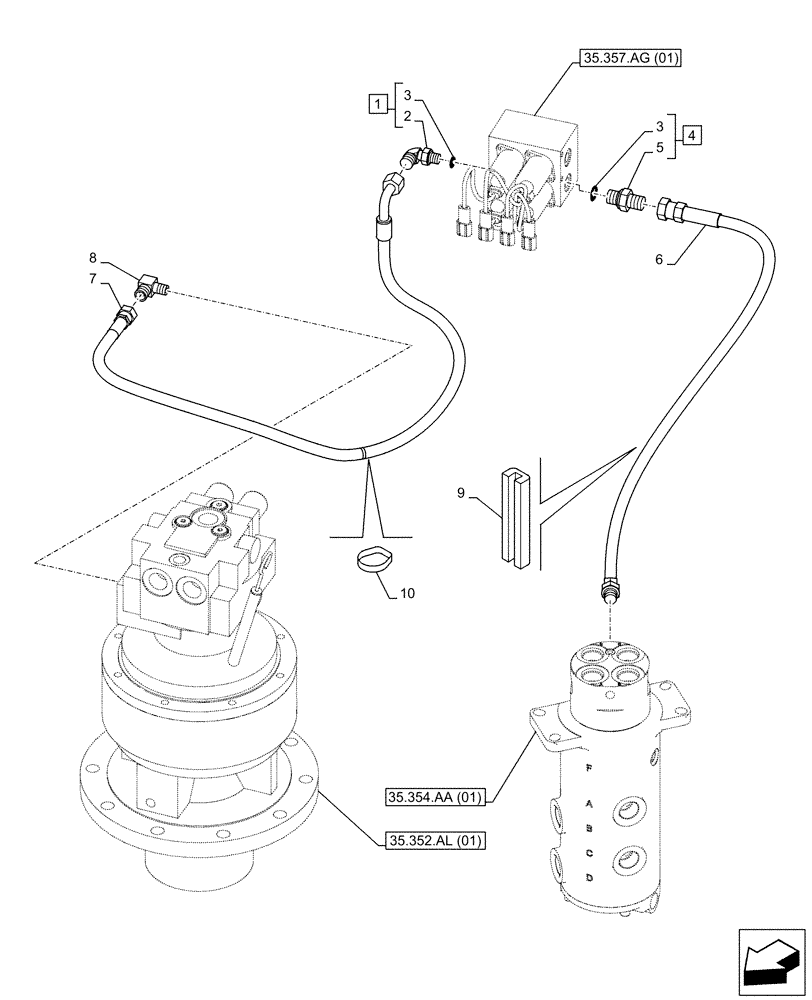

Запчасти Case CX130D LC (35.357.AO[01]) - MAIN, SOLENOID VALVE, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

1

KHJ28710

ELBOW

ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5, 3 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

KHJ28630

ELBOW

1шт.

7

KHJ25970

HOSE

9mm ID x 2350mm

1шт.

8

152749A1

ADAPTER

1шт.

9

KAJ4091

RUBBER SEAL

100mm

2шт.

10

150496A1

MOUNTING CLIP

250mm

2шт.
