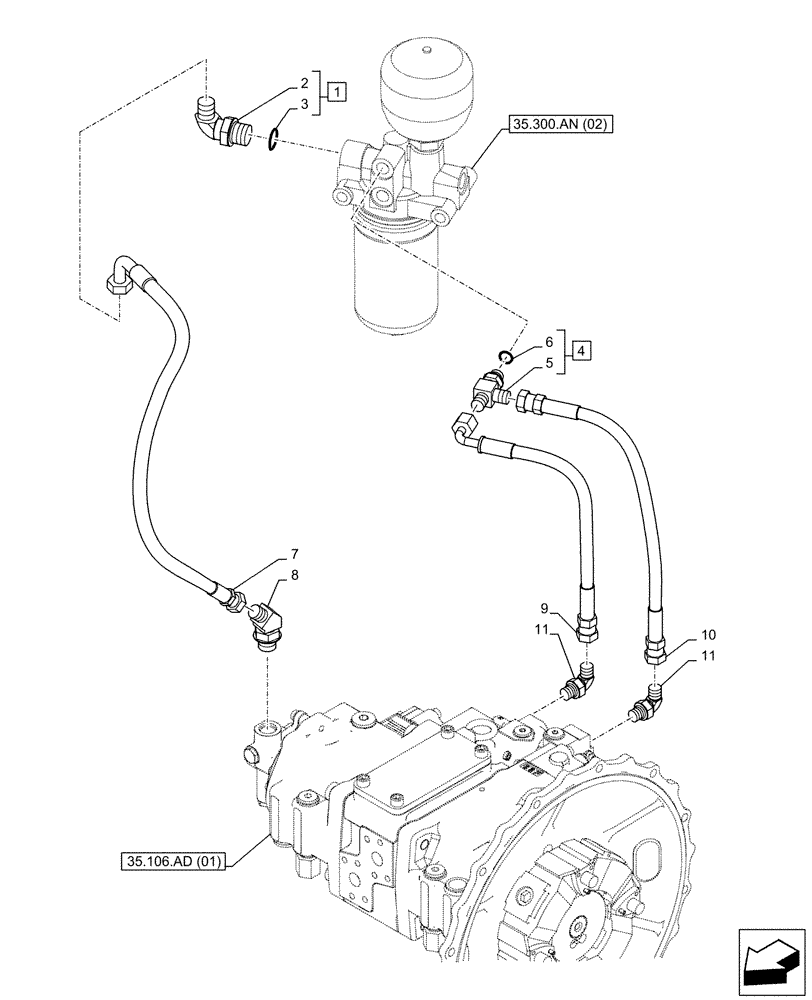

Запчасти Case CX130D LC (35.357.AD) - PILOT VALVE, OIL LINE (35) - HYDRAULIC SYSTEMS

1

KHJ29500

ELBOW

ASSY, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

150539A1

O-RING

1шт.

4

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KHJ25040

HYDRAULIC HOSE

9mm ID x 300mm

1шт.

8

KHJ1254

ELBOW

G1/2" x G3/8"

1шт.

9

KHJ32890

HYDRAULIC HOSE

06mm ID x 380mm

1шт.

10

KHJ34460

HOSE

06mm ID x 320mm

1шт.

11

KHJ28580

ELBOW

G1/4" x G1/4"

2шт.
