(35.356.AR[02]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION

Запчасти Case CX130D LC (35.356.AR[02]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

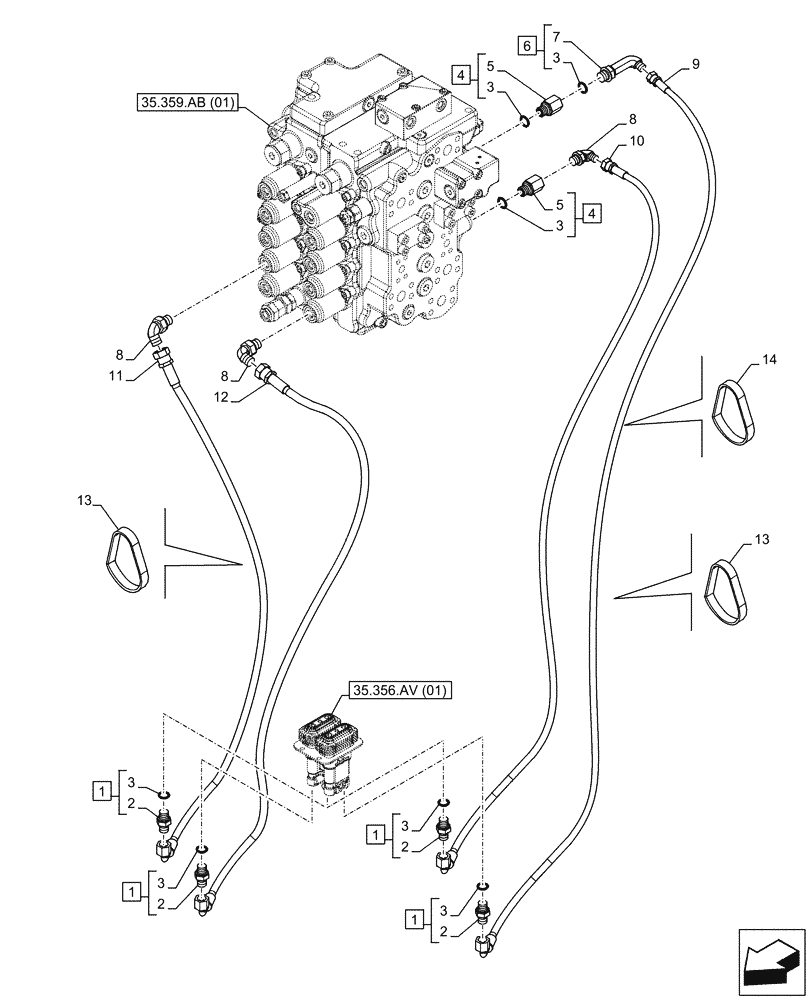

Схема запчастей Case CX130D LC - (35.356.AR[02]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
8
5
3
4
2
8
35.356.av (01)
1
3
1
9
2
13
1
3
1
10
2
3
11
3
35.359.ab (01)
14
7
4
5
6
3
13
2
12
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2, 3 (Qty 1)

4шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

4шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

7шт.

4

KHJ13640

STUD

ASSY, Incl 5, 3 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

6

KHJ28810

ELBOW

ASSY, Incl 7, 3 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.

8

KHJ28580

ELBOW

3шт.

9

KHJ24420

HYDRAULIC HOSE

6mm ID x 2550mm

1шт.

10

KHJ2171

HOSE

6mm ID x 2650mm

1шт.

11

KHJ2198

HOSE,6.3mm ID x 2850mm L

6mm ID x 2850mm

1шт.

12

KHJ2147

HOSE,6.3 mm ID x 2700.00 mm

6mm ID x 2700mm

1шт.

13

150071A1

MOUNTING CLIP

380mm

1шт.

14

150496A1

MOUNTING CLIP

250mm

1шт.
