(35.356.AR[01]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION

Запчасти Case CX130D LC (35.356.AR[01]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

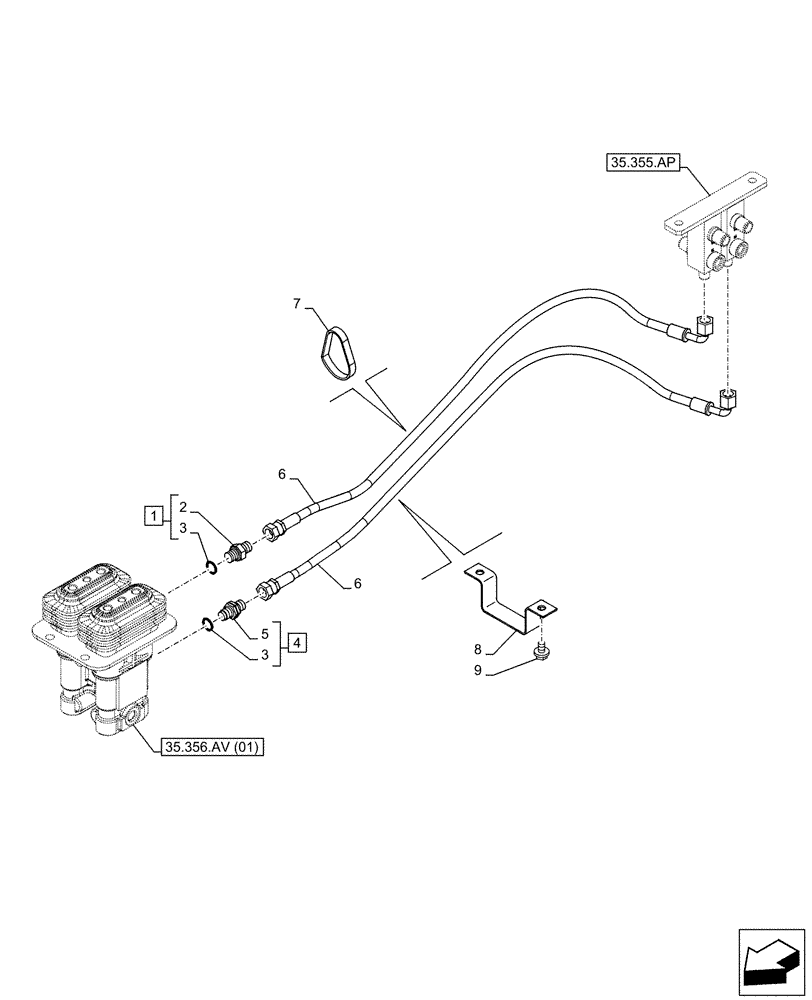

Схема запчастей Case CX130D LC - (35.356.AR[01]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
6
4
1
3
3
9
2
7
35.355.ap
35.356.av (01)
8
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 5, 3 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

KHJ2093

HOSE

6mm ID x 1150mm

2шт.

7

150498A1

MOUNTING CLIP

300mm

1шт.

8

KHJ1220

COLLAR

2шт.

9

166345A1

BOLT

4шт.
