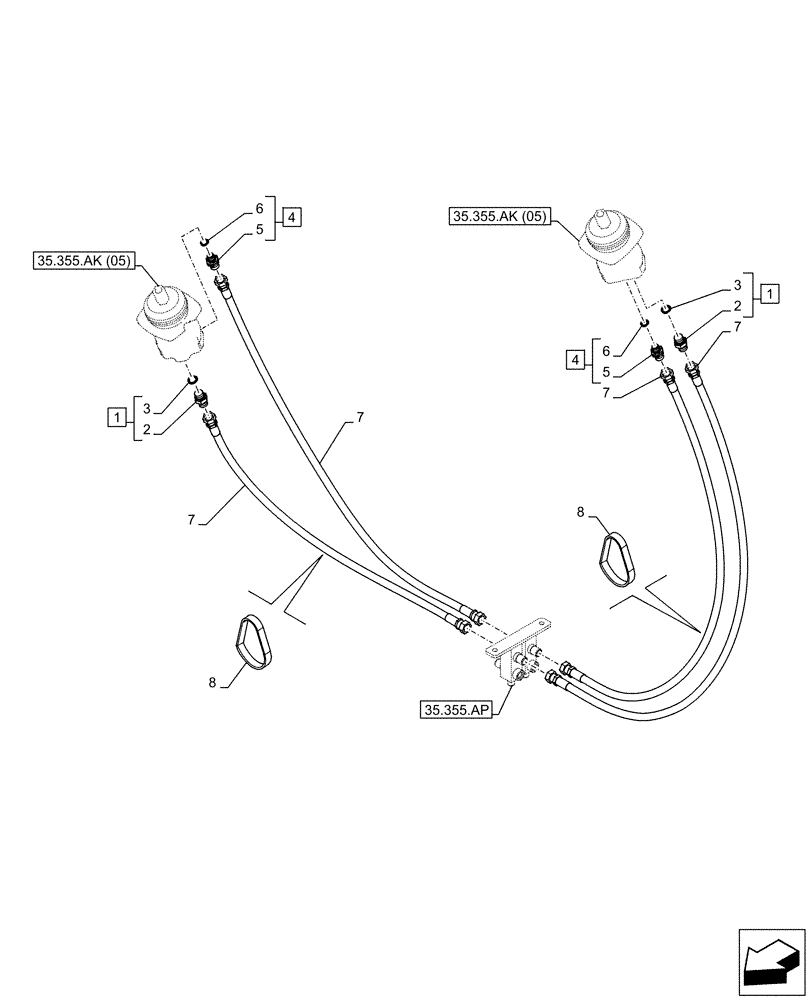

Запчасти Case CX130D LC (35.355.AO[01]) - STD + VAR - 461558 - JOYSTICK, DRAIN LINE, BLOCK, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX130D LC - (35.355.AO[01]) - STD + VAR - 461558 - JOYSTICK, DRAIN LINE, BLOCK, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5370168.png)
8
4
5
35.355.ak (05)
6
7
3
7
6
3
35.355.ak (05)
7
35.355.ap
7
1
4
1
8
5
2
2
№
Артикул
Название
Примечание
Количество
1
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ASSY, G3/8" x G3/8", Incl 2 - 3
2шт.
2
NSS
NOT SOLD SEPARAT
Fitting, Incl in 1
2шт.
3
150031A1
O-RING,10mm ID x 24mm OD
2шт.
4
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
ASSY, G1/4" x G3/8", Incl 5 - 6
2шт.
5
NSS
NOT SOLD SEPARAT
Fitting, Incl in 4
2шт.
6
150960A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
7
159213A1
HYDRAULIC HOSE
9mm ID x 1150mm
4шт.
8
150498A1
MOUNTING CLIP
300mm
2шт.
Выбрано товаров: 8
