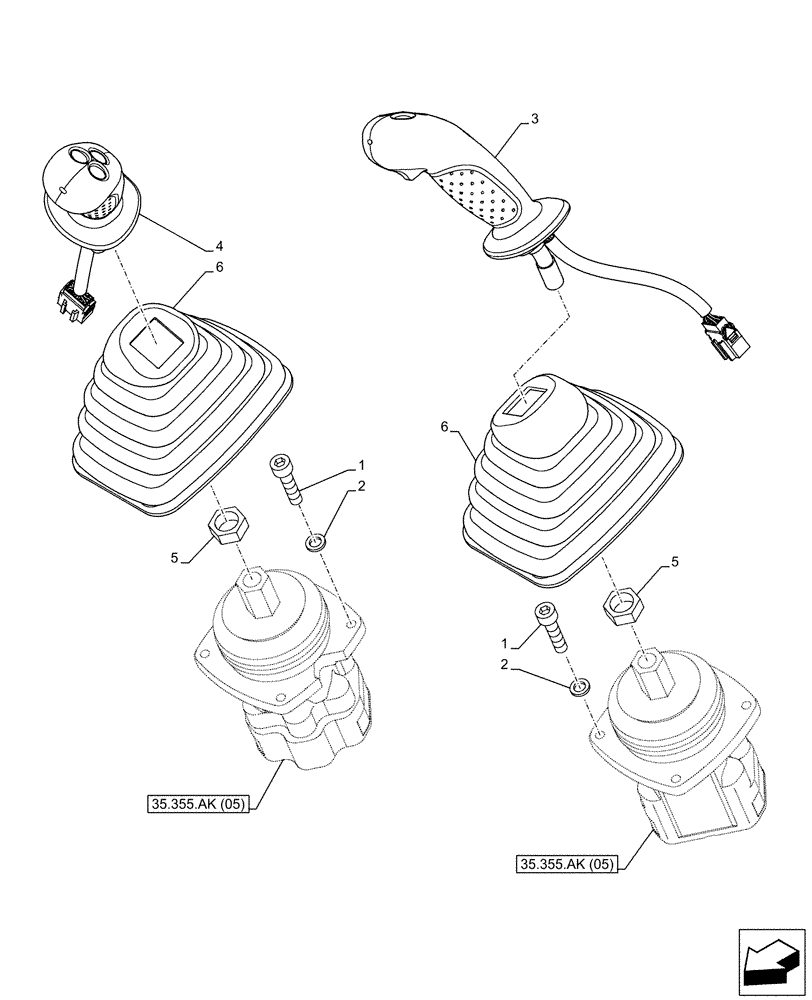

Запчасти Case CX130D LC (35.355.AK[01]) - STD + VAR - 461561, 461571 - JOYSTICK (35) - HYDRAULIC SYSTEMS

1

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

6шт.

2

892-11006

LOCK WASHER,M6

6шт.

3

KHJ24631

JOYSTICK

Left

1шт.

4

KHJ24641

JOYSTICK

Right

1шт.

Can be Equipped with VAR. 461863 See page 35.355.AK [02]

1шт.

5

151154A1

JAM NUT

2шт.

6

KHN16760

BELLOWS

2шт.
