(35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX130D LC (35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

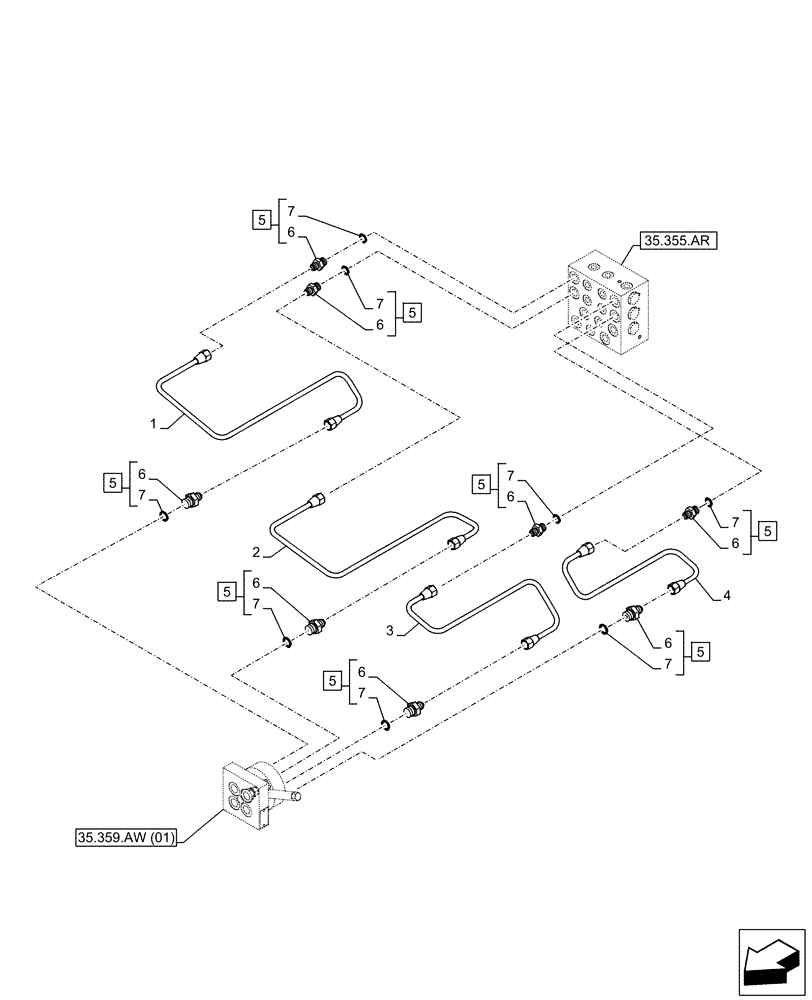

Схема запчастей Case CX130D LC - (35.355.AC[08]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
6
7
6
3
6
6
7
6
7
7
5
5
7
5
35.359.aw (01)
5
2
6
1
6
7
5
7
35.355.ar
4
5
6
5
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ31960

PIPE

1шт.

2

KHJ31970

PIPE

1шт.

3

KHJ32490

PIPE

1шт.

4

KHJ23370

HYD TUBE

1шт.

5

KHJ1821

NIPPLE, LUBE

ASSY, Incl 6 - 7

8шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

8шт.

7

150031A1

O-RING,10mm ID x 24mm OD

8шт.
