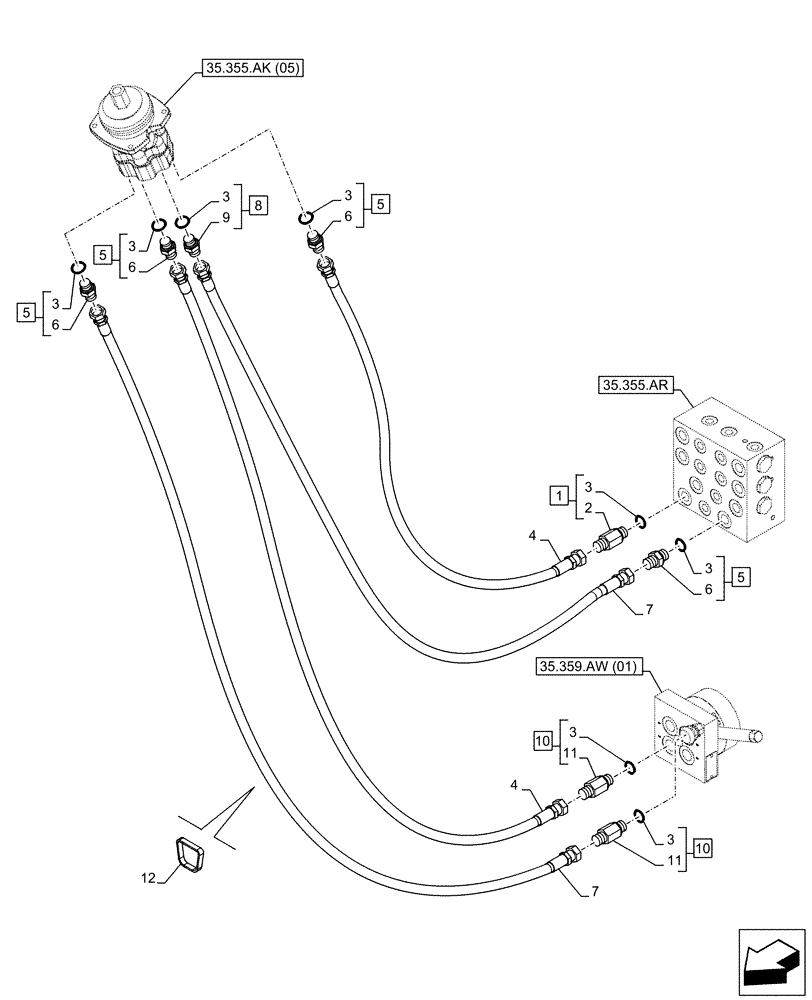

Запчасти Case CX130D LC (35.355.AC[07]) - VAR - 461558 - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KAJ2351

FITTING

ASSY, G3/8" x G3/8", Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

150031A1

O-RING,10mm ID x 24mm OD

8шт.

4

159217A1

HYDRAULIC HOSE

9mm ID x 1850mm

2шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 6, 3 (Qty 1)

4шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

4шт.

7

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

1800mm

2шт.

8

KHJ1402

ADAPTER

ASSY, G3/8" x G3/8", Incl 9, 3 (Qty 1)

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

10

159226A1

ADAPTER

ASSY, G3/8" x G3/8", Incl 11, 3 (Qty 1)

2шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

2шт.

12

150498A1

MOUNTING CLIP

1шт.
