(35.355.AC[06]) - VAR - 461558 - JOYSTICK, RH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX130D LC (35.355.AC[06]) - VAR - 461558 - JOYSTICK, RH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

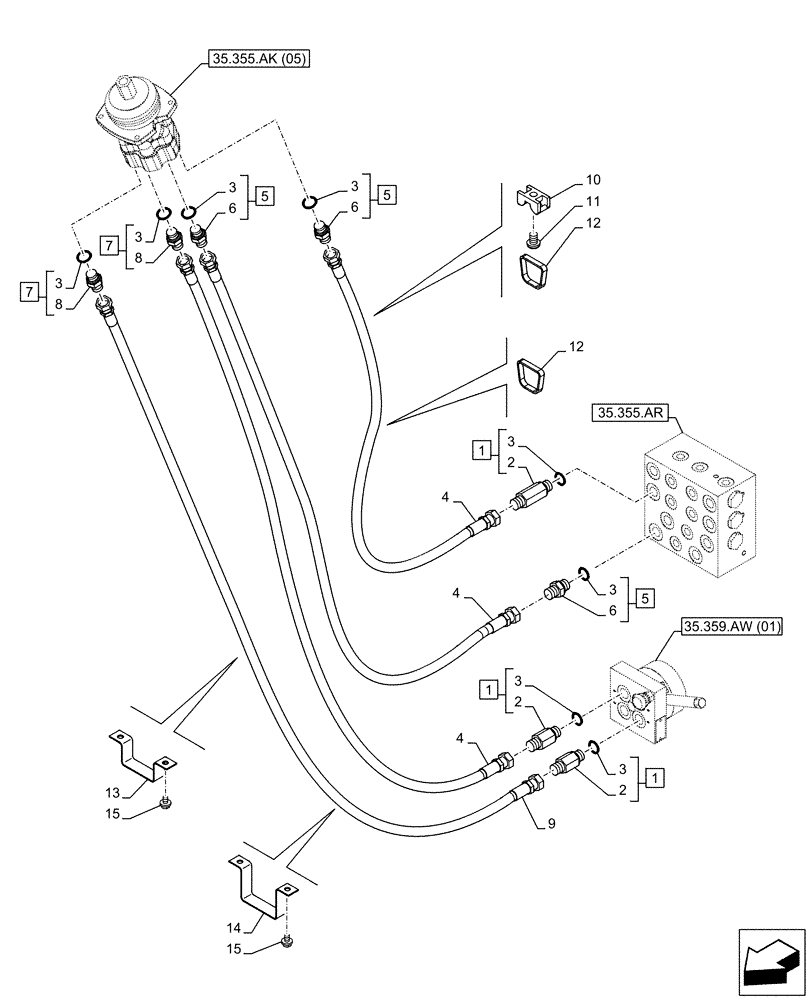

Схема запчастей Case CX130D LC - (35.355.AC[06]) - VAR - 461558 - JOYSTICK, RH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
35.355.ak (05)
8
3
1
35.359.aw (01)
3
3
15
35.355.ar
3
3
4
14
3
13
6
15
7
12
6
12
10
8
5
2
2
3
3
11
1
4
2
1
7
6
5
5
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159226A1

ADAPTER

ASSY, Incl 2, 3 (Qty 3)

3шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

3шт.

3

150031A1

O-RING,10mm ID x 24mm OD

8шт.

4

159211A1

HYDRAULIC HOSE

9mm ID x 2000mm

3шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 6, 3 (Qty 3)

3шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

3шт.

7

KHJ1402

ADAPTER

ASSY, Incl 8, 3 (Qty 2)

2шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

2шт.

9

KHJ22430

HYDRAULIC HOSE

9mm ID x 2050mm

1шт.

10

150860A1

COLLAR

1шт.

11

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

12

150498A1

MOUNTING CLIP

2шт.

13

KHJ13770

COLLAR

1шт.

14

KHJ24020

CLAMP

1шт.

15

166345A1

BOLT

4шт.
