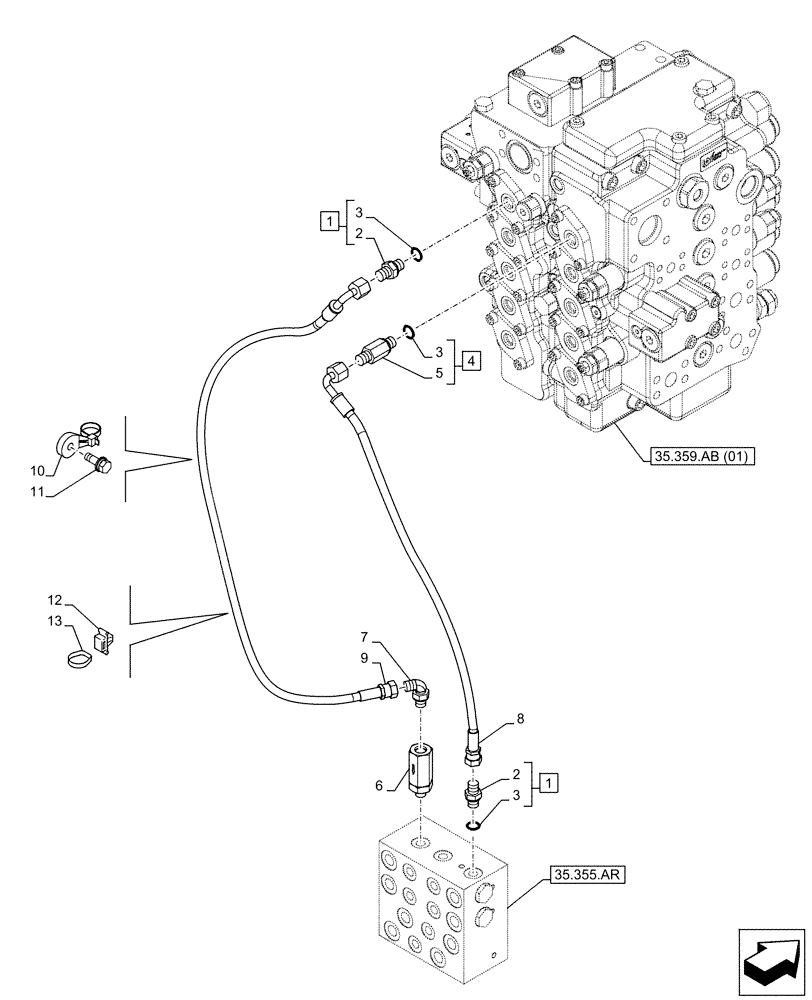

Запчасти Case CX130D LC (35.355.AC[05]) - STD + VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2, 3 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

2шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

4

162554A1

FITTING

ASSY, Incl 5, 3 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

KHJ10790

FILTER SCREEN

1шт.

7

KHJ28580

ELBOW

1шт.

8

KHJ2471

HOSE

6mm ID x 1650mm

1шт.

9

KHJ2088

HOSE

6mm ID x 850mm

1шт.

10

KHR2584

CLAMP

1шт.

11

KHJ1215

BOLT,Spcl

1шт.

12

KHR10220

MOUNTING CLIP

1шт.

13

150496A1

MOUNTING CLIP

250mm

1шт.
