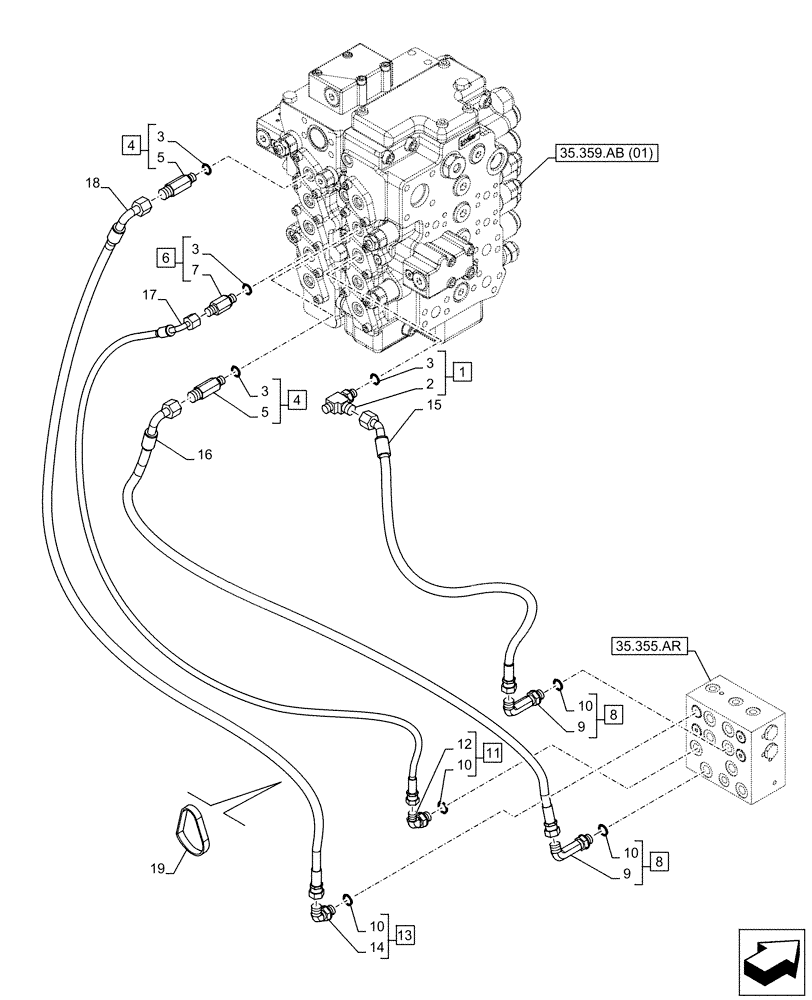

Запчасти Case CX130D LC (35.355.AC[03]) - STD + VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

167517A1

TEE

ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

4

161173A1

ADAPTER

ASSY, Incl 5, 3 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

6

162554A1

FITTING

ASSY, Incl 7, 3 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

KHJ28820

ELBOW

ASSY, Incl 9 - 10 (Qty 2)

2шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

2шт.

10

150031A1

O-RING,10mm ID x 24mm OD

4шт.

11

KHJ28690

ELBOW

ASSY, Incl 12, 10 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.

13

KHJ28590

ELBOW

ASSY, Incl 12, 10 (Qty 1)

1шт.

14

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 13

1шт.

15

KHJ34250

HOSE

9mm ID x 1550mm

1шт.

16

KHJ16210

HYDRAULIC HOSE

9mm ID x 1450mm

1шт.

17

KHJ2093

HOSE

6mm ID x 1150mm

1шт.

18

KHJ2624

HOSE

9mm ID x 1200mm

1шт.

19

150496A1

MOUNTING CLIP

250mm

1шт.
