(35.355.AC[02]) - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case CX130D LC (35.355.AC[02]) - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

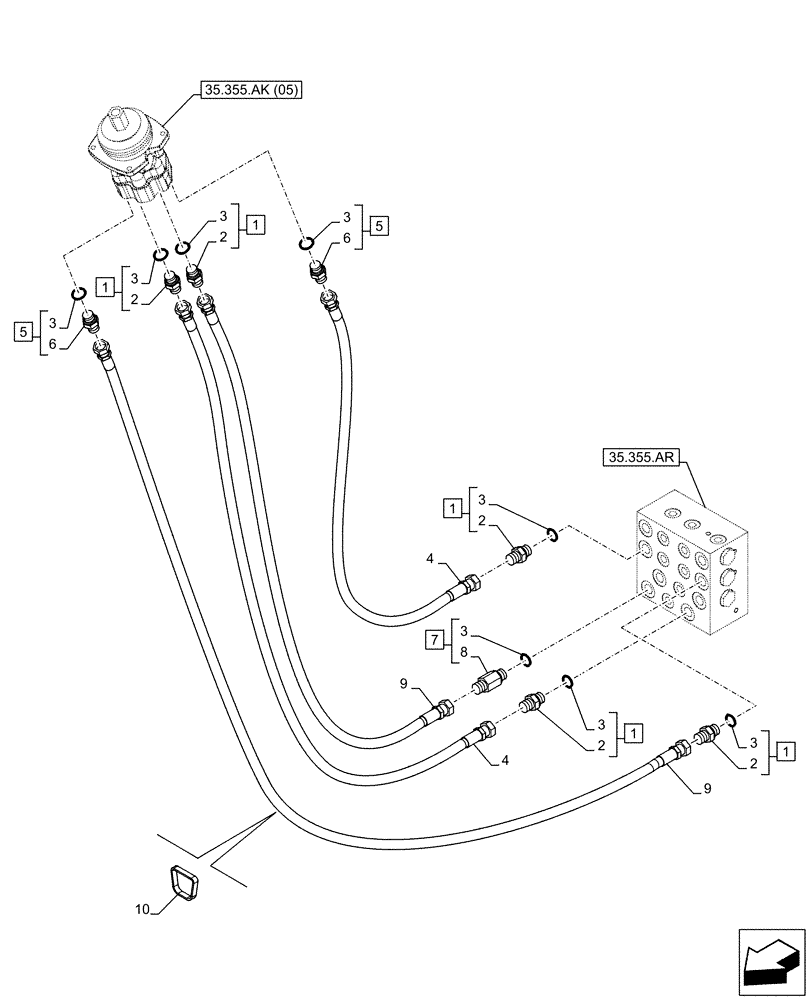

Схема запчастей Case CX130D LC - (35.355.AC[02]) - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
6
4
9
2
3
1
5
10
8
1
4
3
6
9
1
2
2
2
3
1
3
3
7
35.355.ar
5
3
2
3
35.355.ak (05)
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 2, 3 (Qty 1)

5шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

5шт.

3

150031A1

O-RING,10mm ID x 24mm OD

8шт.

4

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

1800mm

2шт.

5

KHJ1402

ADAPTER

ASSY, G3/8" x G3/8", Incl 6, 3 (Qty 1)

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

7

KAJ2351

FITTING

ASSY, G3/8" x G3/8", Incl 8, 3 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

159217A1

HYDRAULIC HOSE

9mm ID x 1850mm

2шт.

10

150498A1

MOUNTING CLIP

2шт.
