(35.355.AC[01]) - JOYSTICK, RH, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case CX130D LC (35.355.AC[01]) - JOYSTICK, RH, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

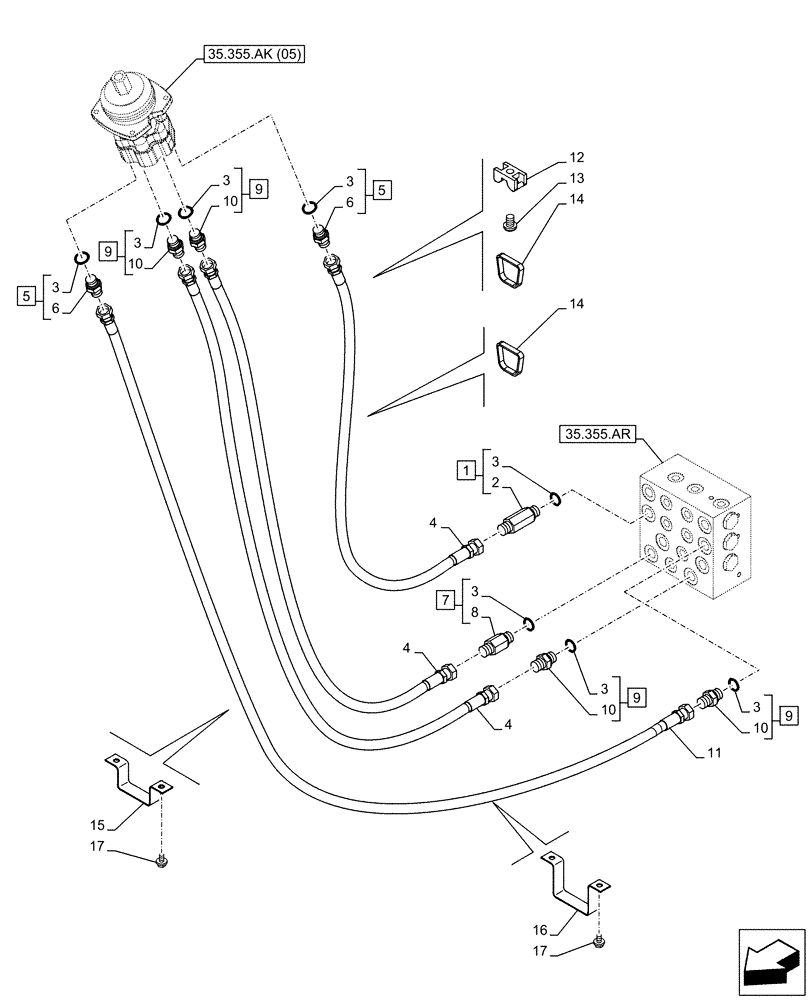

Схема запчастей Case CX130D LC - (35.355.AC[01]) - JOYSTICK, RH, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
3
7
10
13
3
35.355.ak (05)
3
17
3
5
6
4
16
15
9
1
4
14
10
10
3
9
4
3
6
9
11
10
35.355.ar
17
12
8
3
3
9
5
2
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAJ2351

FITTING

ASSY, G3/8" x G3/8", Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

150031A1

O-RING,10mm ID x 24mm OD

8шт.

4

159211A1

HYDRAULIC HOSE

9mm ID x 2000mm

3шт.

5

KHJ1402

ADAPTER

ASSY, G3/8" x G3/8", Incl 6, 3 (Qty 1)

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

7

159226A1

ADAPTER

ASSY, G3/8" x G3/8", Incl 8, 3 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 10, 3 (Qty 1)

4шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

4шт.

11

KHJ22430

HYDRAULIC HOSE

9mm ID x 2050mm

1шт.

12

150860A1

COLLAR

1шт.

13

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

14

150498A1

MOUNTING CLIP

300mm

2шт.

15

KHJ13770

COLLAR

1шт.

16

KHJ24020

CLAMP

1шт.

17

166345A1

BOLT

4шт.
