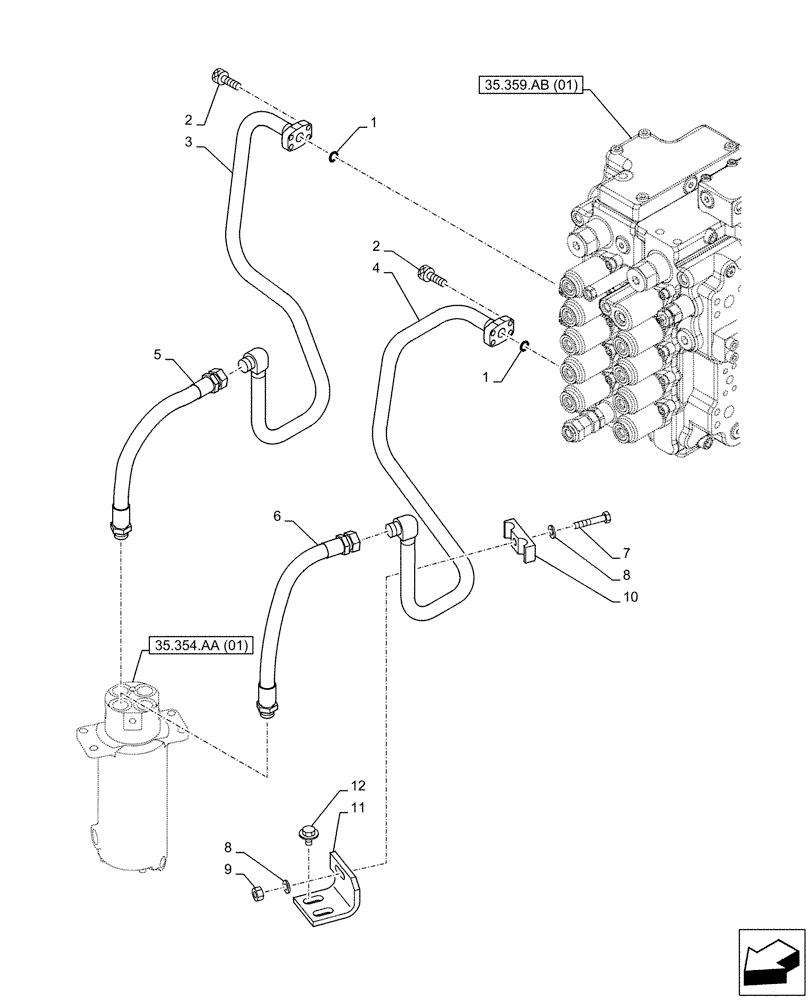

Запчасти Case CX130D LC (35.354.AF[02]) - HYDRAULIC SWIVEL, LINE (35) - HYDRAULIC SYSTEMS

1

161097A1

O-RING

2шт.

2

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

3

KNJ15790

HYD TUBE

1шт.

4

KNJ14800

HYD TUBE

1шт.

5

KLJ10680

HOSE ASSY.,15.90 mm ID x 470.00 mm

15mm ID x 470mm

1шт.

6

KNJ15830

HYDRAULIC HOSE,490.00 mm

15mm ID x 490mm

1шт.

7

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

8

150811A1

WASHER

2шт.

9

162R012VR

NUT

M12

1шт.

10

152085A1

COLLAR

1шт.

11

KNJ15820

BRACKET

1шт.

12

KHN12020

BOLT,Spcl

M12 x 25mm

2шт.
