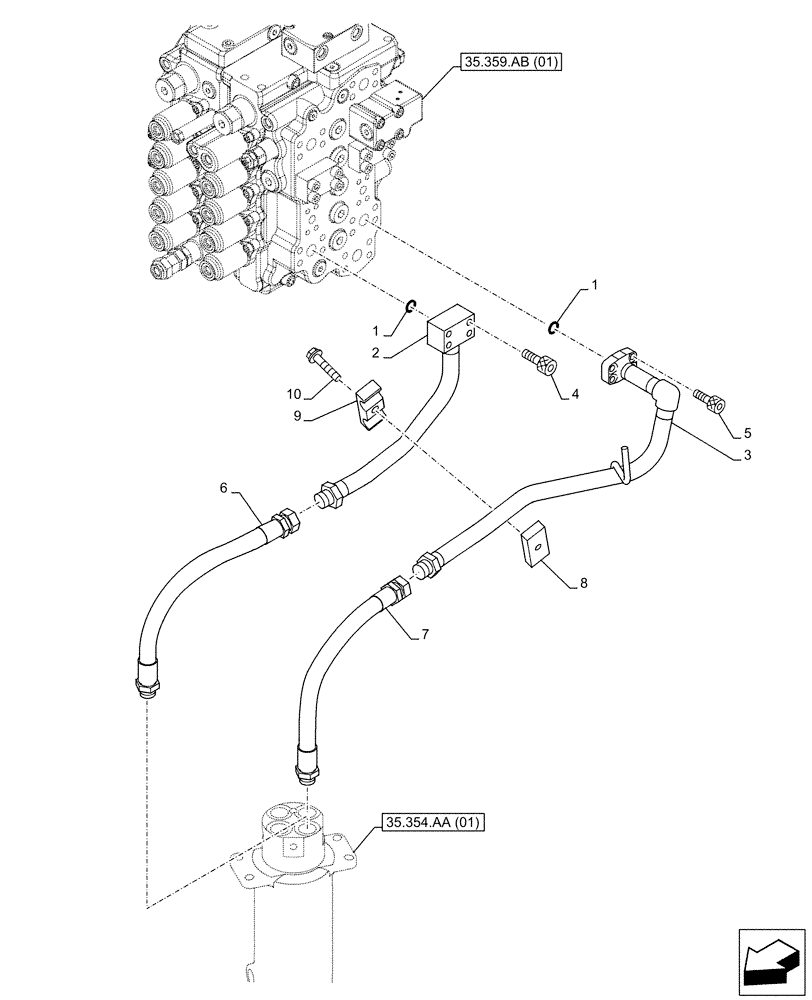

Запчасти Case CX130D LC (35.354.AF[01]) - HYDRAULIC SWIVEL, LINE (35) - HYDRAULIC SYSTEMS

1

161097A1

O-RING

2шт.

2

KNJ15810

HYD TUBE

1шт.

3

KNJ18140

HYD TUBE

1шт.

4

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

4шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

6

KLJ10680

HOSE ASSY.,15.90 mm ID x 470.00 mm

15mm ID x 470mm

1шт.

7

KNJ15830

HYDRAULIC HOSE,490.00 mm

15mm ID x 490mm

1шт.

8

KRJ10720

PLATE

1шт.

9

152085A1

COLLAR

1шт.

10

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

1шт.
