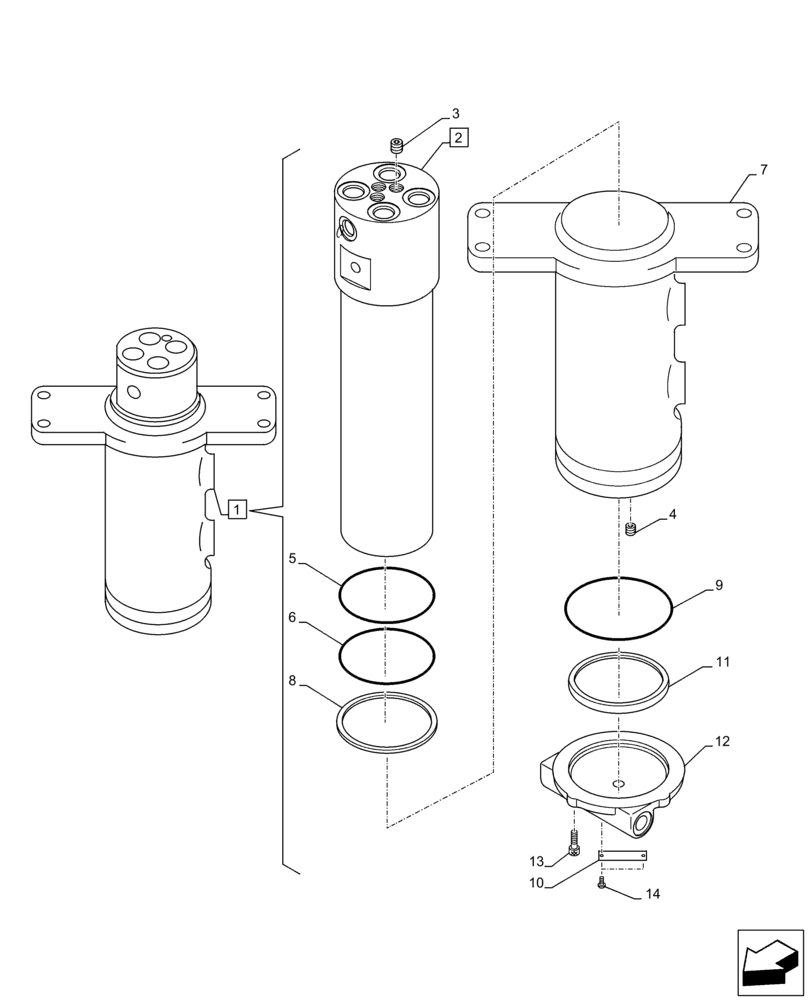

Запчасти Case CX130D LC (35.354.AA[02]) - HYDRAULIC SWIVEL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KRA11190

HYDRAULIC SWIVEL

ASSY, Incl 2 - 14

1шт.

1

KRA11190R

REMAN-HYDRAULIC SWIV

1шт.

1

KRA11190C

CORE-HYDRAULIC SWIV

Return Number

1шт.

2

KRA11200

HOUSING

ASSY, Incl 3, 4

1шт.

3

150821A1

PLUG

1шт.

4

150829A1

PLUG

4шт.

5

151814A1

SEAL,72mm ID x 84mm OD x 11mm Thk

1шт.

6

KHA10130

O-RING

1шт.

7

KRA1872

ROTOR

1шт.

8

168295A1

SEALING RING,80mm ID x 90mm OD x 4.8mm Thk

7шт.

9

154721A1

O-RING,99.4mm ID x 3.1mm Width

1шт.

10

152593A1

TYPE PLATE

1шт.

11

KRA10380

THRUST PLATE

1шт.

12

KRA1874

COVER

1шт.

13

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

8шт.

14

301-1413

DRIVE SCREW,Drive, #2 x 3/16"

2шт.
