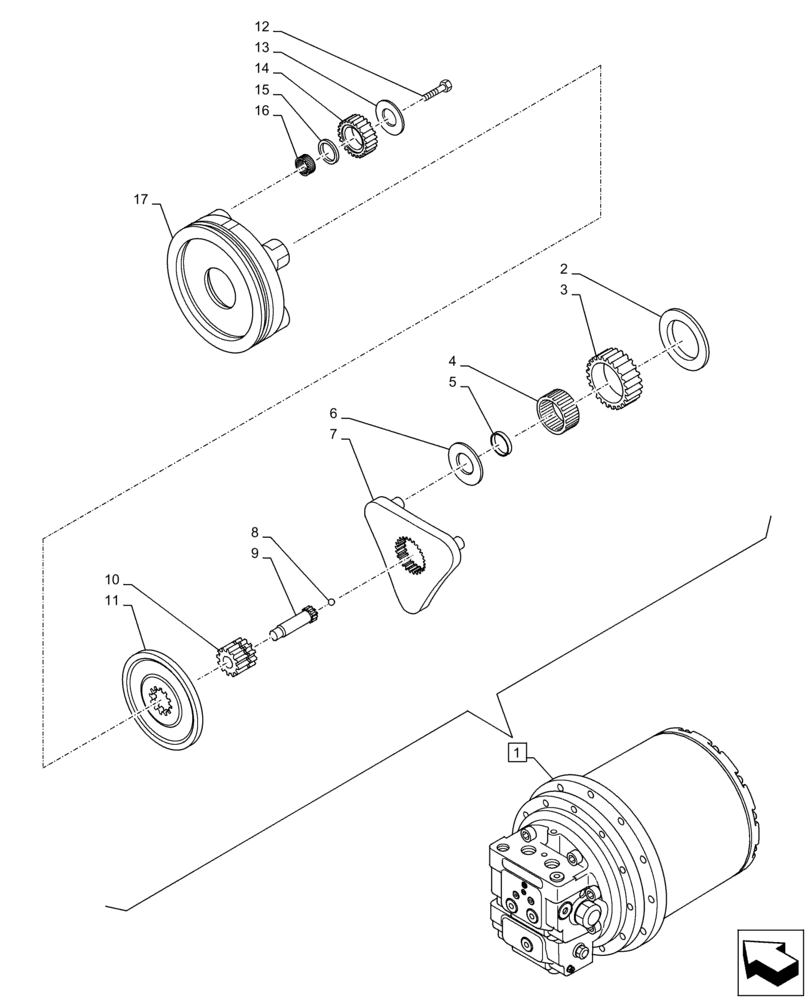

Запчасти Case CX130D LC (35.353.AG[02]) - MOTO-REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KNA13631

HYDRAULIC MOTOR

ASSY, Incl 2 - 17

1шт.

See als Figure 35.353.AB(01), 35.353.AB(02), 35.353.AD(01), 35.353AD(02), 35.353.AD(03), 35.353.AG(01)

1шт.

2

LR023760

PLATE

2шт.

3

LC003980

PLANETARY GEAR

3шт.

4

LB013360

NEEDLE BEARING

3шт.

5

LE018080

RING

3шт.

6

LA017670

WASHER

3шт.

7

LN003850

CARRIER

1шт.

8

LB017190

BALL

1шт.

9

LC003970

SUN GEAR

1шт.

10

LC003990

SUN GEAR

1шт.

11

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

12

LA017700

BOLT

4шт.

13

LA017680

WASHER

4шт.

14

LC004000

PLANETARY GEAR

4шт.

15

LE026370

RING

4шт.

16

LB017300

NEEDLE BEARING

4шт.

17

LN003860

CARRIER

1шт.
