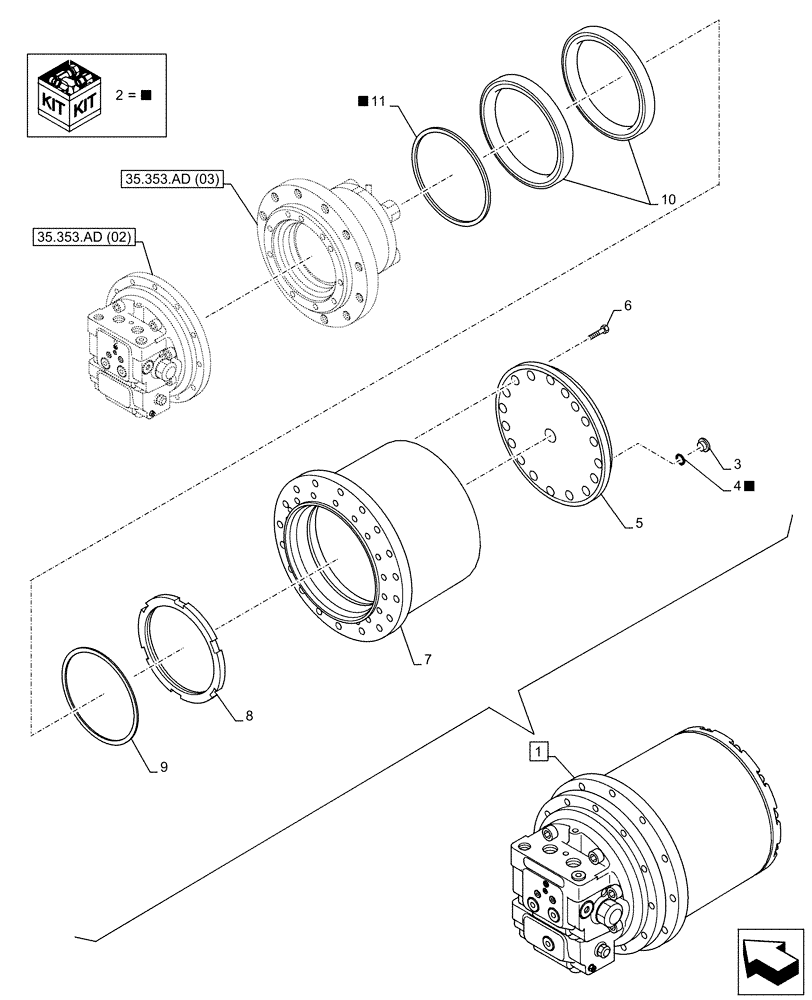

Запчасти Case CX130D LC (35.353.AG[01]) - MOTO-REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KNA13631

HYDRAULIC MOTOR

ASSY, Incl 2 - 11

1шт.

See als Figure 35.353.AB(01), 35.353.AB(02), 35.353.AD(01), 35.353AD(02), 35.353.AD(03), 35.353.AG(02)

1шт.

2

LE026550

SEAL

1шт.

See als Figure 35.353.AB(02), 35.353.AD(02), 35.353.AD(03)

1шт.

3

165237A1

PLUG

2шт.

4

LE026300

O-RING

2шт.

5

LW007430

COVER

1шт.

6

LA017690

BOLT

12шт.

7

LT002970

HOUSING

1шт.

8

LA011780

LOCK WASHER

2шт.

9

LH005380

ADJUSTING PLATE

2шт.

10

LB012760

BALL BEARING

2шт.

11

LE016880

SEAL

1шт.
