(35.353.AE) - TRAVEL MOTOR & REDUCTION GEAR, LINES

Запчасти Case CX130D LC (35.353.AE) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

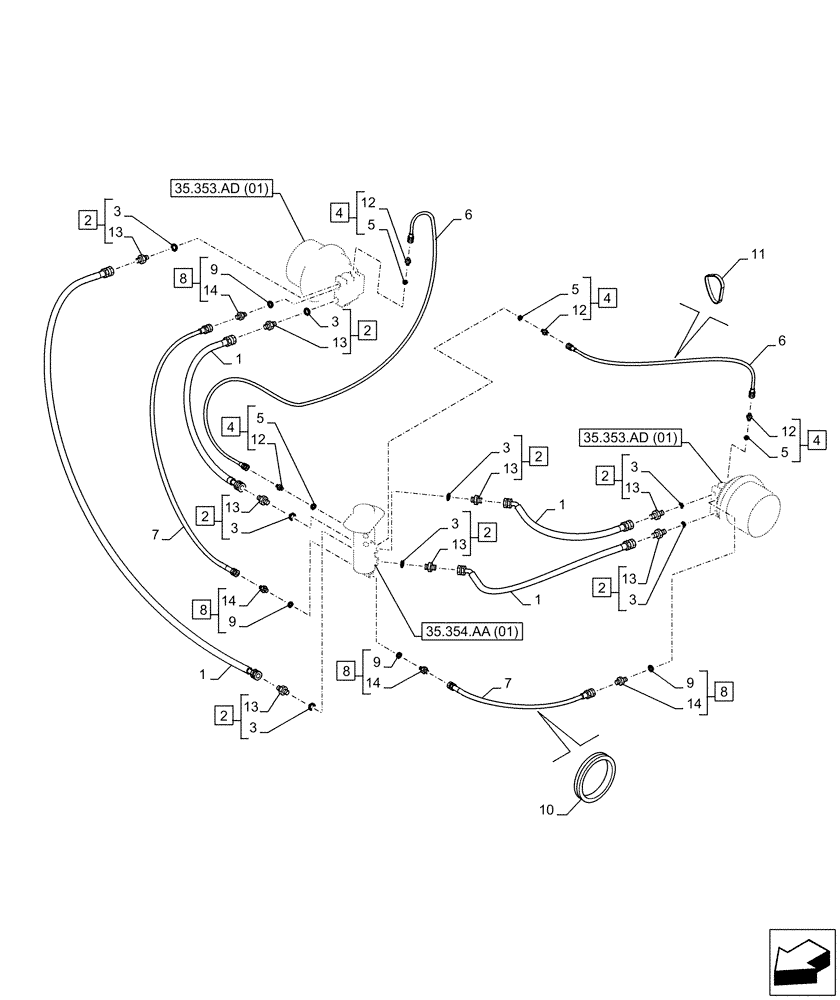

Схема запчастей Case CX130D LC - (35.353.AE) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
5
8
11
35.353.ad (01)
3
8
9
4
12
13
2
3
3
14
13
35.354.aa (01)
4
2
10
5
8
2
8
12
9
2
1
12
5
4
3
7
14
12
13
2
35.353.ad (01)
1
6
13
7
6
3
3
2
13
13
1
3
4
9
13
9
2
5
2
3
13
14
14
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MPA2028

HOSE ASSY.

4шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 3, 13

8шт.

3

150542A1

O-RING

8шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5, 12

4шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

6

KHJ18010

HYDRAULIC HOSE

2250mm

2шт.

7

150063A1

HOSE ASSY.

2шт.

8

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 9, 14

4шт.

9

150539A1

O-RING

4шт.

10

150876A1

RUBBER BLOCK

2шт.

11

150071A1

MOUNTING CLIP

380mm

5шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

4шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

8шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

4шт.
