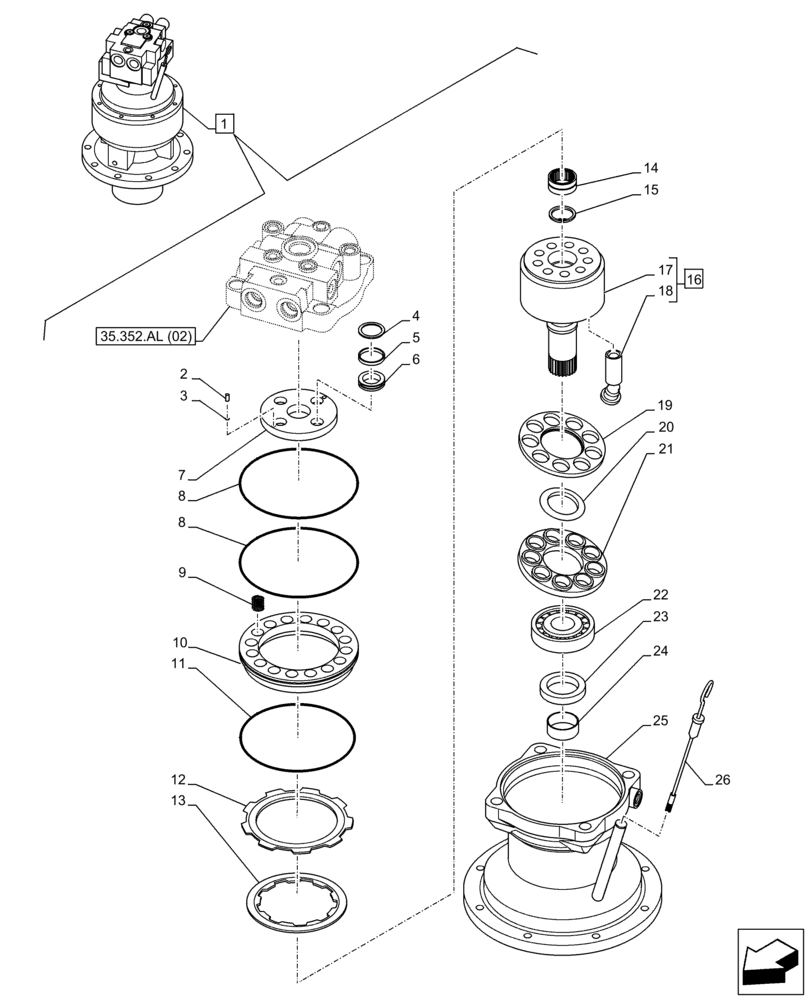

Запчасти Case CX130D LC (35.352.AL[03]) - SWING REDUCTION UNIT, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KNC10160

HYDRAULIC MOTOR

ASSY, Incl 2 - 26

1шт.

See also Figure 35.352.AL (01), 35.352.AL (02) 35.352.AJ, 35.352.AO

1шт.

2

LJ00722

PISTON

2шт.

3

LE00774

RING

2шт.

4

LG00336

SPRING

4шт.

5

LE00775

RING

4шт.

6

LB00543

BUSHING

4шт.

7

LR00572

ACTUATING PLATE

1шт.

8

LE027600

O-RING

2шт.

9

156077A1

SPRING

16шт.

10

160938A1

PISTON

1шт.

11

LE027590

O-RING

1шт.

12

160995A1

DISC

2шт.

13

160996A1

BRAKE DISC

2шт.

14

160967A1

BEARING, NEEDLE,22 mm ID x 35 mm OD x 20 mm

1шт.

15

160867A1

RING, SNAP

1шт.

16

LJ018850

ROTOR

ASSY, Incl 17 - 18

1шт.

17

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 16

1шт.

18

NSS

NOT SOLD SEPARAT

Piston, Incl in 16

1шт.

19

160994A1

TRAY

1шт.

20

160993A1

BACK-UP RING

1шт.

21

160940A1

LARGE PLATE

1шт.

22

160966A1

TAPERED BEARING,30mm ID x 62mm OD x 21.25mm W

1шт.

23

160780A1

OIL SEAL

1шт.

24

160941A1

SEALING RING

1шт.

25

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

26

KRC0172

DIPSTICK

1шт.
