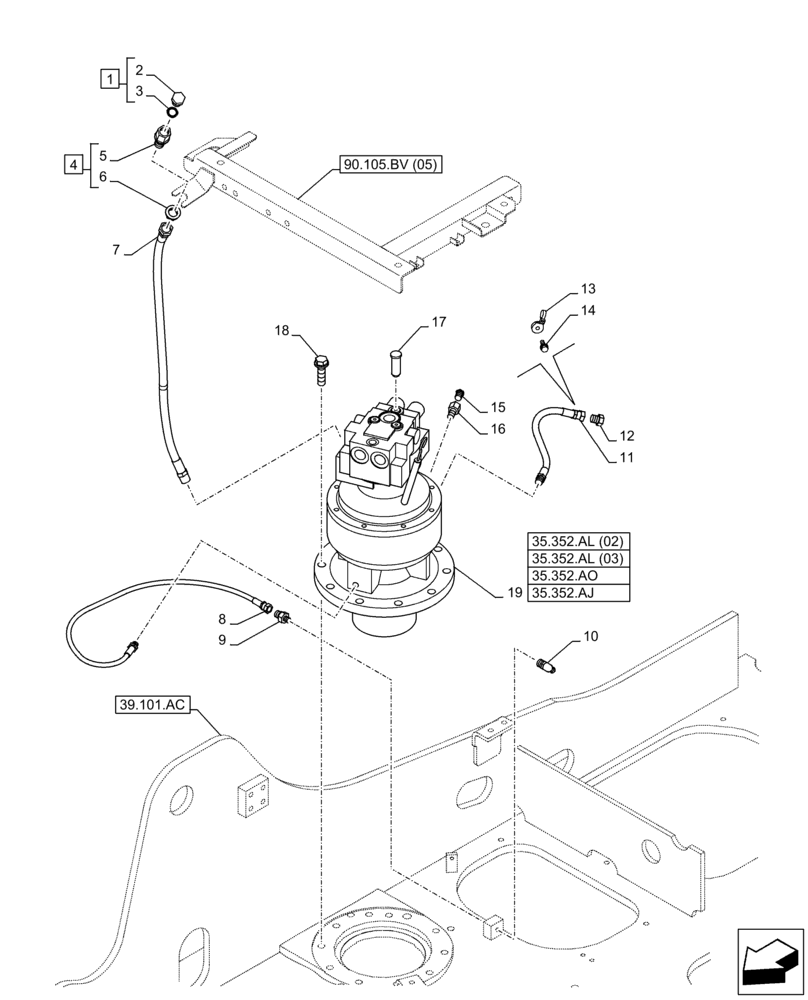

Запчасти Case CX130D LC (35.352.AL[01]) - SWING REDUCTION UNIT (35) - HYDRAULIC SYSTEMS

1

159085A1

PLUG

ASSY, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

3

150539A1

O-RING

1шт.

4

KHJ1079

ADAPTER

ASSY, Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

Adapter, Incl in 4

1шт.

6

NSS

NOT SOLD SEPARAT

Adapter, Incl in 4

1шт.

7

KNJ15620

HYDRAULIC HOSE

12mm ID x 700mm

1шт.

8

KHJ17750

HOSE

1шт.

9

KRJ4050

ADAPTER

1шт.

10

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

11

KNJ14580

HYDRAULIC HOSE,470.00 mm

9mm ID x 350mm

1шт.

12

KHP0501

PLUG

1шт.

13

KHR2584

CLAMP

1шт.

14

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

15

KRC10710

VALVE

1шт.

16

KRC10720

FITTING

1шт.

17

150036A1

HEADED PIN,20mm OD x 60mm L

1шт.

18

167584A1

BOLT,Sems, M16 x 60mm

9шт.

19

KNC10160

HYDRAULIC MOTOR

ASSY Motor Swing W/ANTI-RVS V

1шт.
