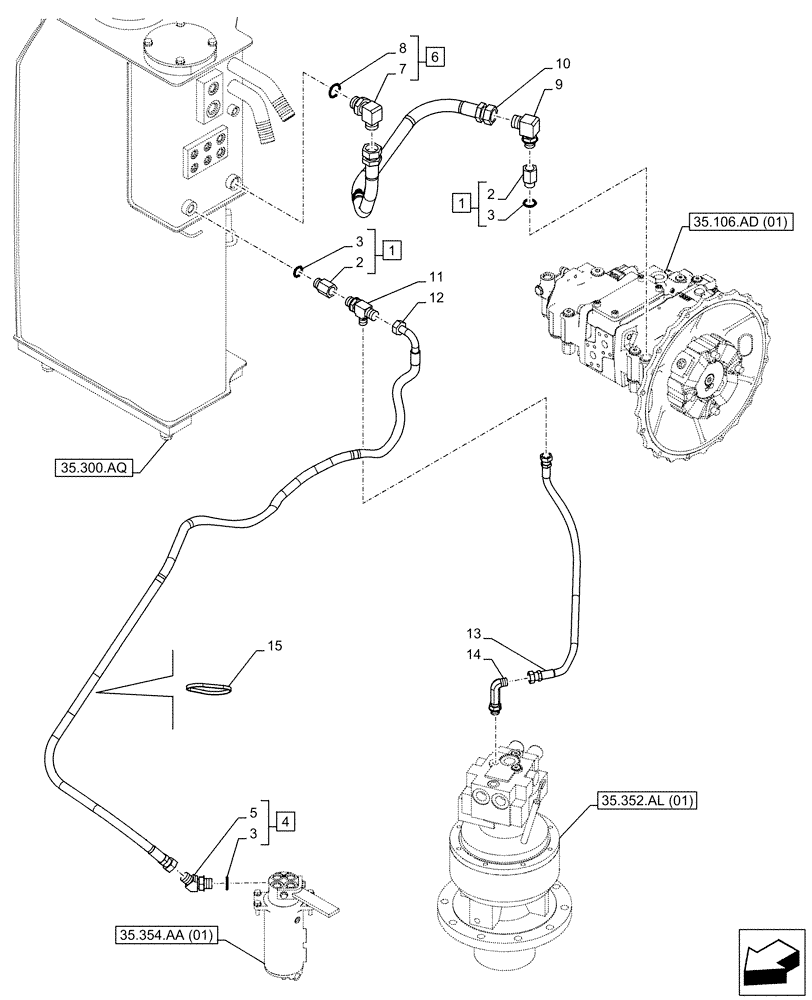

Запчасти Case CX130D LC (35.352.AI[02]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

KHJ1713

STUD

ASSY, G1/2" x G1/2" x 44mm, Incl 2, 3 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

2шт.

3

150539A1

O-RING

3шт.

4

157585A1

ELBOW

ASSY, Incl 5, 3 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 4

1шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4" x G3/4", Incl 7 - 8

1шт.

7

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.

8

150542A1

O-RING

1шт.

9

168609A1

ELBOW

G1/2" x G3/4"

1шт.

10

KNJ22740

HYDRAULIC HOSE

15mm ID x 760mm

1шт.

11

KHJ1300

TEE

G1/2" x G1/2" x G3/8"

1шт.

12

KHJ31550

HYDRAULIC HOSE

1шт.

13

167871A1

HYDRAULIC HOSE,19.00 mm ID x 700.00 mm

9mm ID x 700mm

1шт.

14

KHJ28820

ELBOW

G3/8" x G3/8"

1шт.

15

150496A1

MOUNTING CLIP

250mm

8шт.
