(35.352.AI[01]) - MOTO-REDUCTION GEAR, LINES

Запчасти Case CX130D LC (35.352.AI[01]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

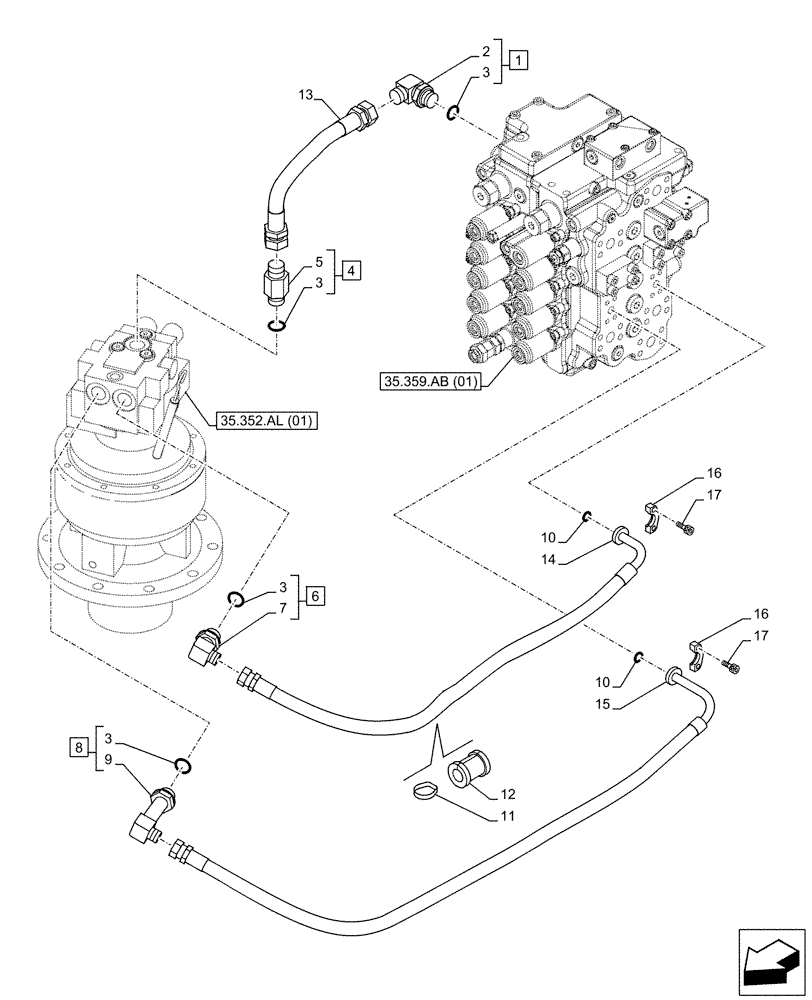

Схема запчастей Case CX130D LC - (35.352.AI[01]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
3
5
35.359.ab (01)
16
7
3
11
3
16
15
35.352.al (01)
17
17
1
14
13
10
9
6
10
4
3
2
8
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY G3/4" x G3/4", Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

150542A1

O-RING

4шт.

4

KAJ2917

ADAPTER

ASSY, Incl 5, 3 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

157936A1

ELBOW

ASSY, Incl 7, 3 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.

8

KHJ17650

ELBOW

ASSY, Incl 9, 3 (Qty 1)

1шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

1шт.

10

161096A1

O-RING

2шт.

11

150071A1

MOUNTING CLIP

380mm

3шт.

12

KHJ2021

HOSE CLAMP

1шт.

13

KLJ0433

1шт.

14

KNJ12240

HOSE ASSY.

12mm ID x 600mm

1шт.

15

KNJ14590

HYDRAULIC HOSE,800.00 mm

12mm ID x 800mm

1шт.

16

161080A1

FLANGE

4шт.

17

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

8шт.
