(35.300.AD) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE

Запчасти Case CX130D LC (35.300.AD) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE (35) - HYDRAULIC SYSTEMS

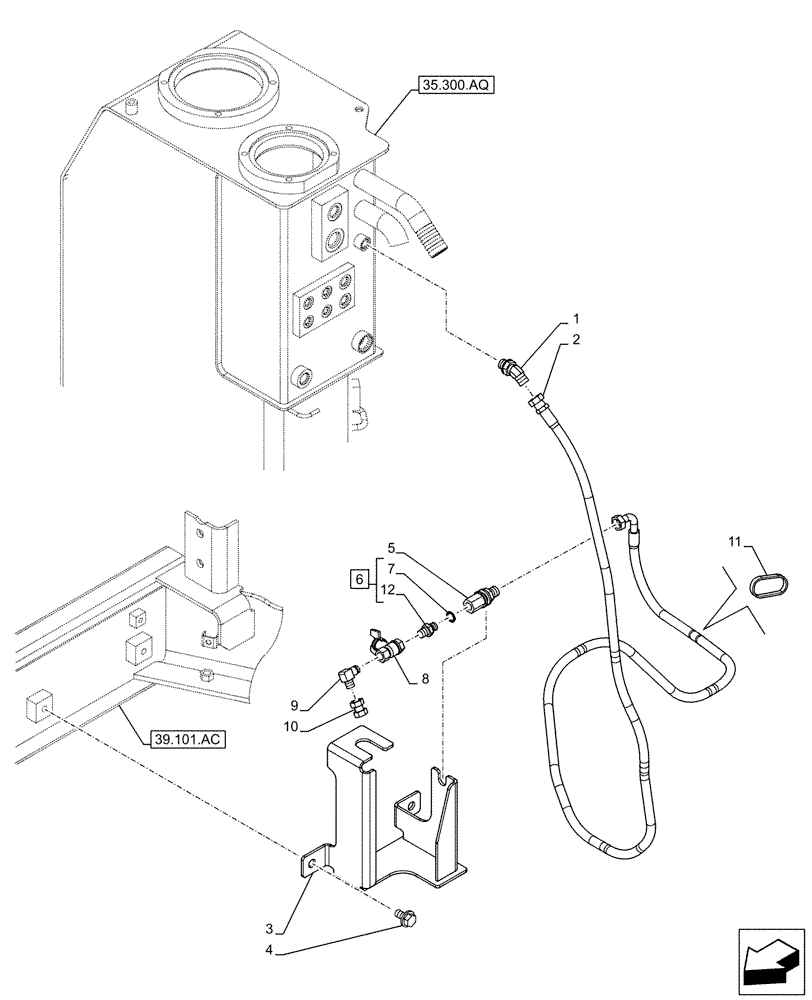

Схема запчастей Case CX130D LC - (35.300.AD) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE (35) - HYDRAULIC SYSTEMS
12
39.101.ac
4
7
6
1
10
2
35.300.aq
5
9
3
11
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28640

ELBOW

G3/8" x G3/8"

1шт.

2

KHJ35010

HYDRAULIC HOSE

1шт.

3

KNJ22700

BRACKET

1шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

5

KHJ0569

ADAPTER

G1/4" x G3/8"

1шт.

6

152899A1

HYD CONNECTOR

ASSY, Incl 7, 12

1шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

158923A1

DRAIN VALVE

1шт.

9

153596A1

ADAPTER

1шт.

10

158842A1

PLUG

G1/4"

1шт.

11

150496A1

MOUNTING CLIP

250mm

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.
