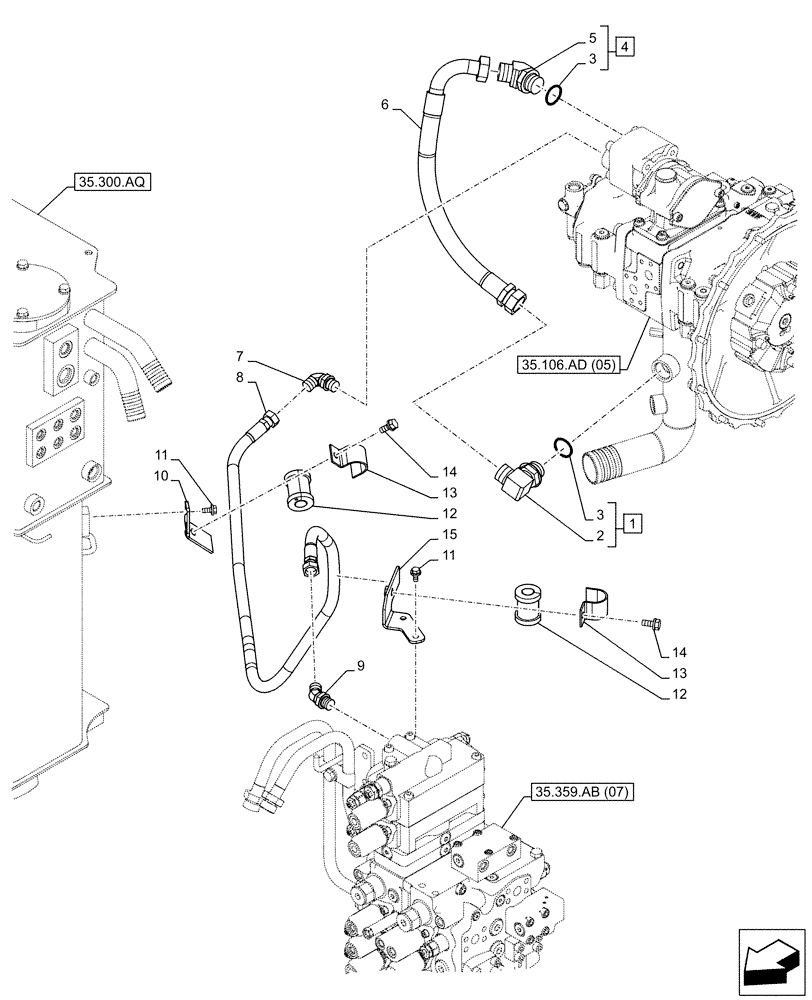

Запчасти Case CX130D LC (35.106.AO[04]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY G1" x G1", Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

152211A1

O-RING

2шт.

4

157587A1

ELBOW

ASSY G1" x G1", Incl 5, 3 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 4

1шт.

6

KSJ2723

HYDRAULIC HOSE,25.40 mm ID x 530.00 mm

25mm ID x 530mm

1шт.

7

KHJ28600

ELBOW

1шт.

8

KBJ13260

HYDRAULIC HOSE,1500.00 mm

1шт.

9

KHJ28650

ELBOW

1шт.

10

KNJ20610

BRACKET

1шт.

11

166350A1

BOLT

M8 x 20mm

3шт.

12

KHJ2021

HOSE CLAMP

2шт.

13

KHJ2025

CLAMP

2шт.

14

166052A1

BOLT

2шт.

15

KNJ20600

BRACKET

1шт.
