(35.106.AO[02]) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE

Запчасти Case CX130D LC (35.106.AO[02]) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

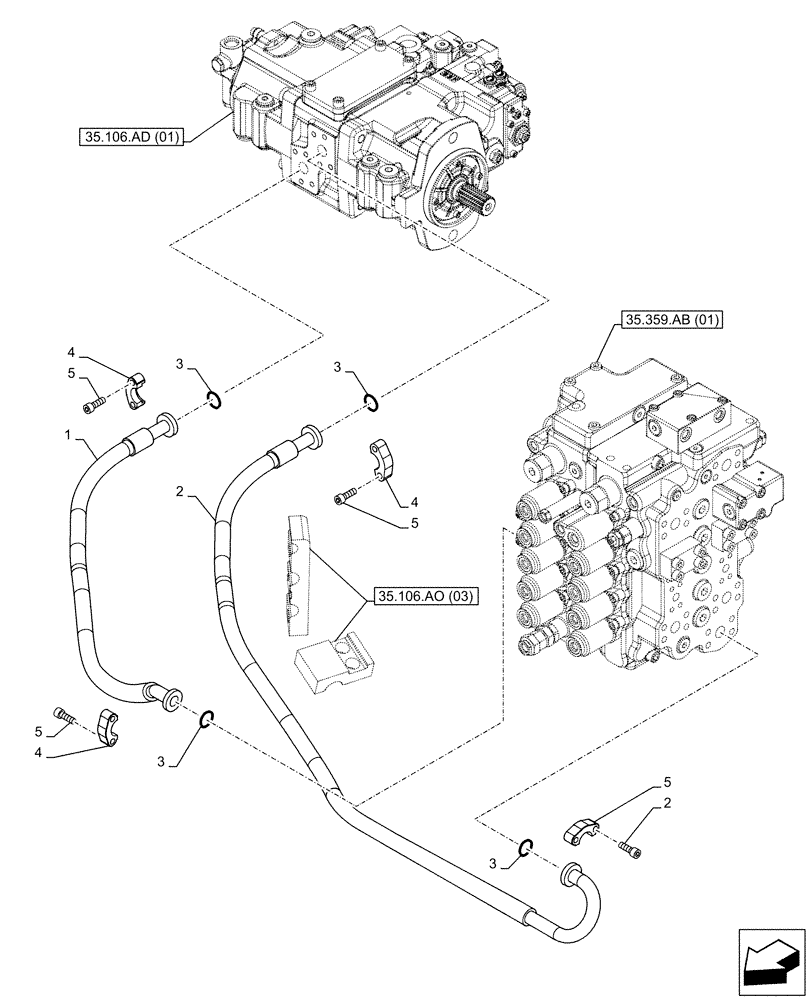

Схема запчастей Case CX130D LC - (35.106.AO[02]) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS
5
3
35.106.ao (03)
35.359.ab (01)
5
4
4
2
3
2
5
35.106.ad (01)
4
3
5
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ19960

HYDRAULIC HOSE

15mm ID x 960mm

1шт.

2

KNJ19970

HYDRAULIC HOSE

15mm ID x 1180mm

1шт.

3

161097A1

O-RING

4шт.

4

152598A1

HALF-COLLAR

8шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.
