(35.106.AN[01]) - VAR - 461863 - HYDRAULIC PUMP, PTO, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPRTIONAL CONTROL

Запчасти Case CX130D LC (35.106.AN[01]) - VAR - 461863 - HYDRAULIC PUMP, PTO, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPRTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

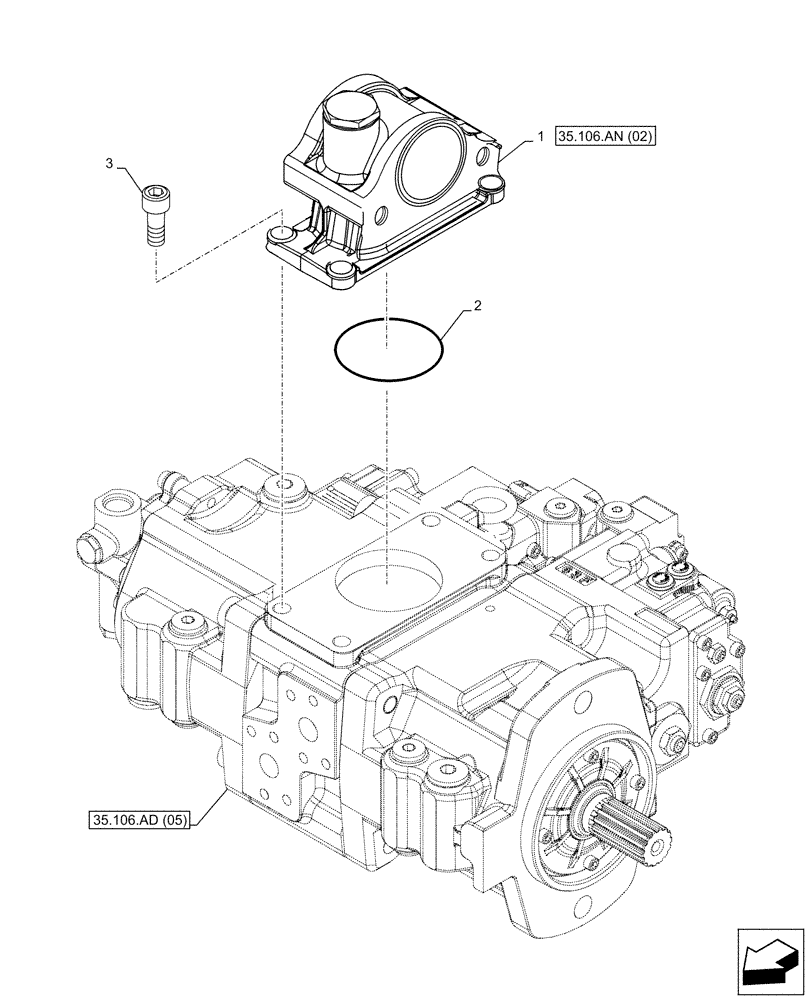

Схема запчастей Case CX130D LC - (35.106.AN[01]) - VAR - 461863 - HYDRAULIC PUMP, PTO, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPRTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
2
1
3
35.106.an (02)
35.106.ad (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LC003030

GEAR

ASSY, Incl 3

1шт.

Parts are included in Hydraulic pump assembly PN KNJ21980

1шт.

2

LE013510

O-RING

1шт.

3

LA00691

BOLT,Hex Skt Hd

4шт.
