(35.106.AD[07]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPRTIONAL CONTROL, COMPONENTS

Запчасти Case CX130D LC (35.106.AD[07]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPRTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

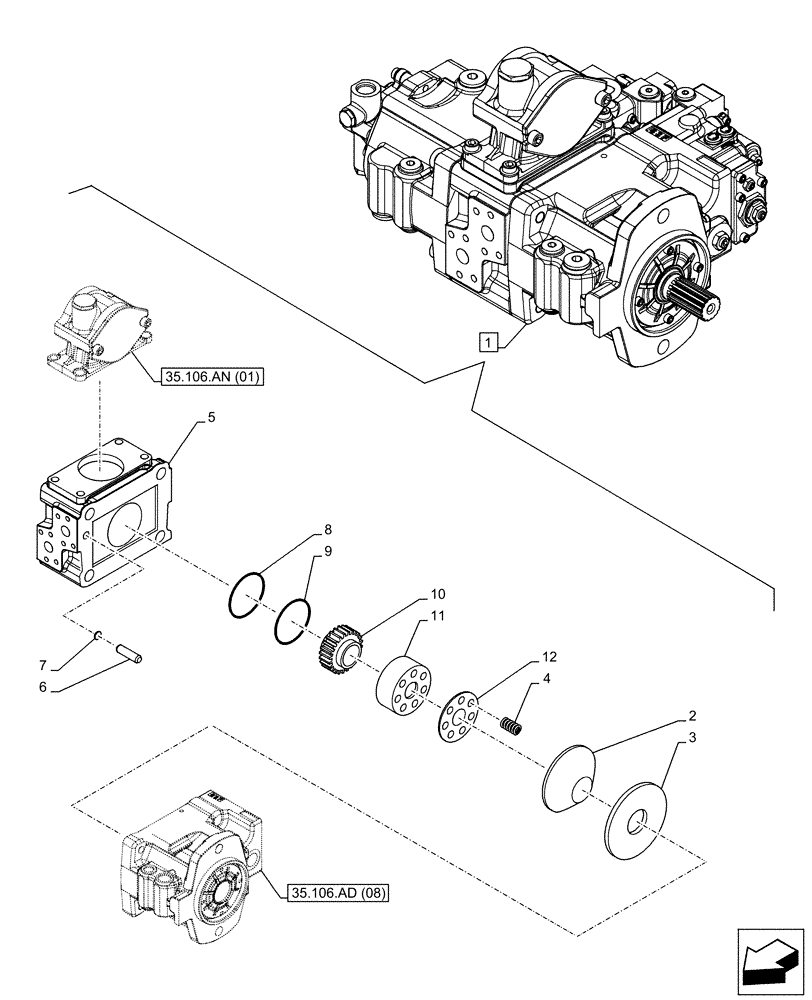

Схема запчастей Case CX130D LC - (35.106.AD[07]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPRTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
11
12
35.106.ad (08)
4
10
2
7
1
5
3
8
35.106.an (01)
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ21980

HYDRAULIC PUMP

ASSY, Incl 2 - 12

1шт.

See also Figure 35.106.AD(05), 35.106.AD(06), 35.106.AD(08), 35.106.AN(01), 35.106.AN(02), 35.357.AC(02)

1шт.

2

LR015660

PLATE

2шт.

3

LS004870

SUPPORT

2шт.

4

156960A1

SPRING

12шт.

5

LJ022950

VALVE

1шт.

6

LA017130

PIN

4шт.

7

LE022170

SEAL

12шт.

8

LE00606

O-RING

2шт.

9

LE013410

O-RING

4шт.

10

LC003020

GEAR

1шт.

11

LJ015070

BARREL

1шт.

12

LR015670

PLATE

2шт.
