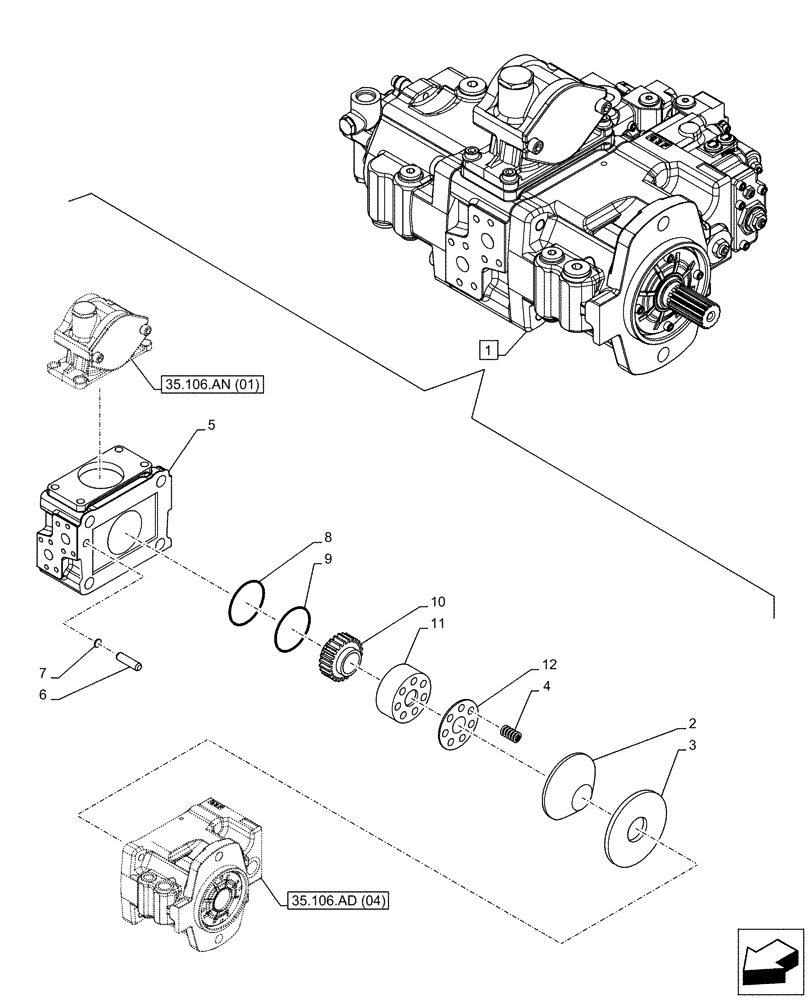

Запчасти Case CX130D (35.106.AD[03]) - VARIABLE DELIVERY HYDRAULIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KNJ21980

HYDRAULIC PUMP

ASSY, Incl 2 - 12

1шт.

See also Figure 35.106.AD(01), 35.106.AD(02), 35.106.AD(04), 35.106.AN(01), 35.106.AN(02), 35.357.AC

1шт.

2

LR015660

PLATE

2шт.

3

LS004870

SUPPORT

2шт.

4

156960A1

SPRING

12шт.

5

LJ022950

VALVE

1шт.

6

LA017130

PIN

4шт.

7

LE022170

SEAL

12шт.

8

LE00606

O-RING

2шт.

9

LE013410

O-RING

4шт.

10

LC003020

GEAR

1шт.

11

LJ015070

BARREL

1шт.

12

LR015670

PLATE

2шт.
