(88.100.90[15]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, RH

Запчасти Case CX130D (88.100.90[15]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, RH (88) - ACCESSORIES

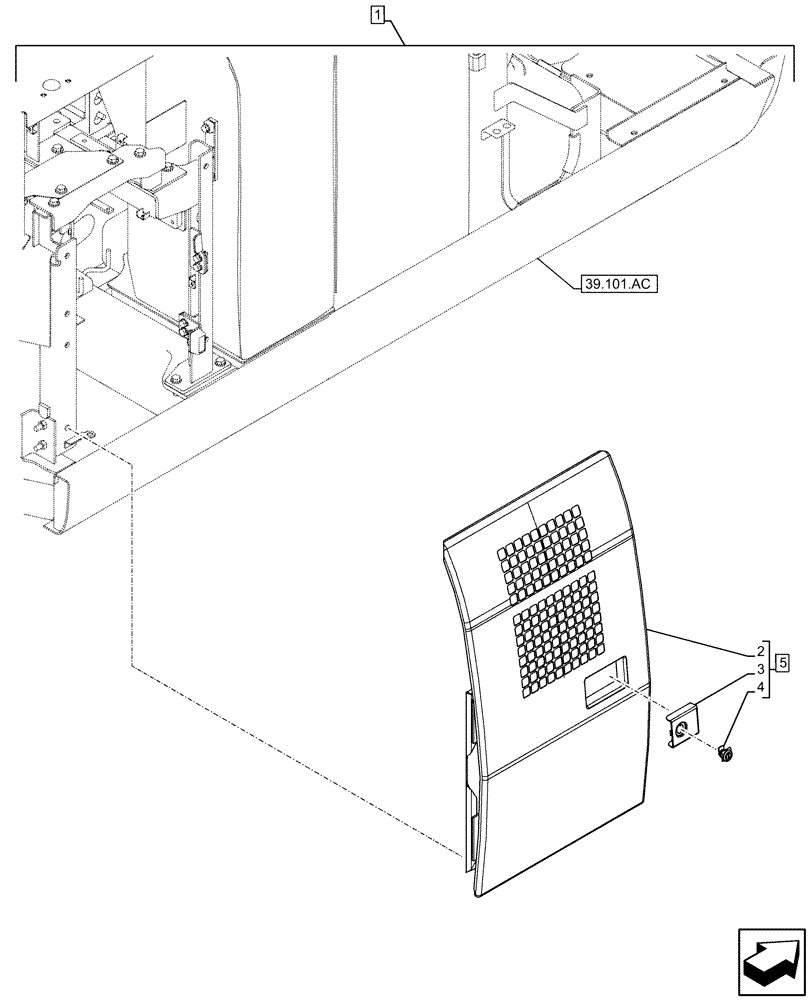

Схема запчастей Case CX130D - (88.100.90[15]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, RH (88) - ACCESSORIES
39.101.ac
2
1
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP080-00

CONSTRUCTION DIA

Parts, Repair, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Door RH, Incl in 5

1шт.

3

NSS

NOT SOLD SEPARAT

Lock, Incl in 5

1шт.

4

KHN24530

LOCK CYLINDER

1шт.

5

KNN16540NA

DOOR

ASSY, RH, Incl 2 - 4

1шт.

Выбрано товаров: 6
