(88.100.90[14]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, LH

Запчасти Case CX130D (88.100.90[14]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, LH (88) - ACCESSORIES

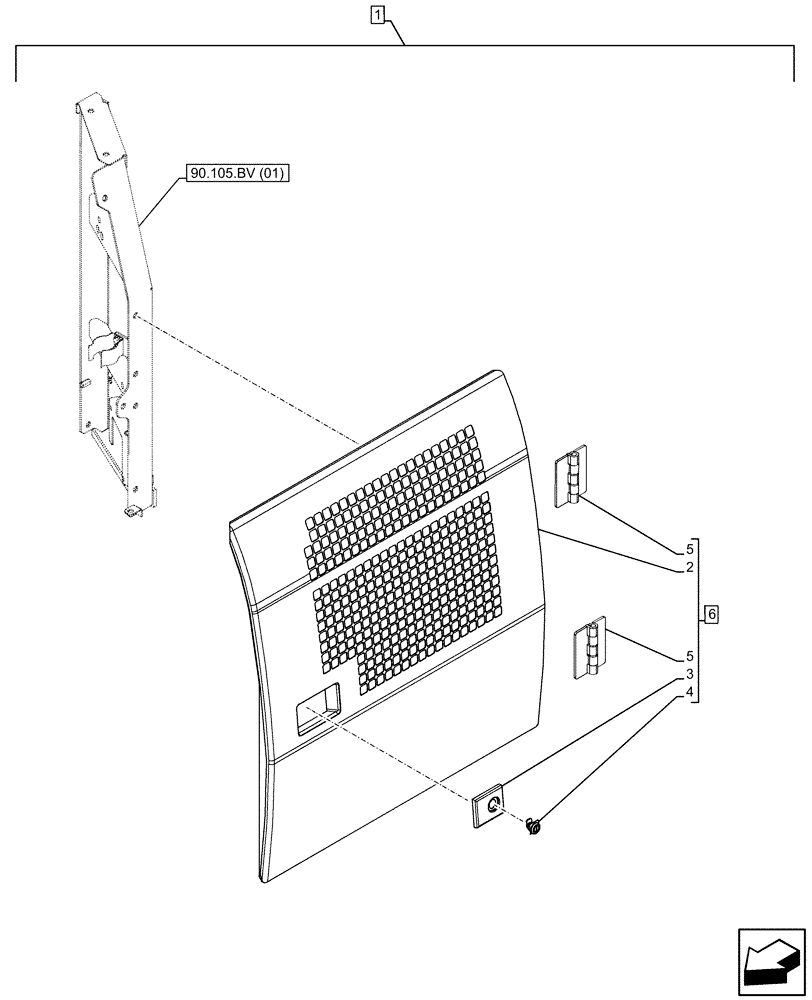

Схема запчастей Case CX130D - (88.100.90[14]) - DIA KIT, ENGINE, SIDE PANEL, DOOR, LH (88) - ACCESSORIES
6
1
2
3
5
4
90.105.bv (01)
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP080-00

CONSTRUCTION DIA

Parts, Repair, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Door LH, Incl in 6

1шт.

3

150938A1

LOCK

1шт.

4

KHN24530

LOCK CYLINDER

1шт.

5

KHN35880

HINGE

2шт.

6

KNN16530NA

DOOR

ASSY, LH, Incl 2 - 5

1шт.

Выбрано товаров: 7
