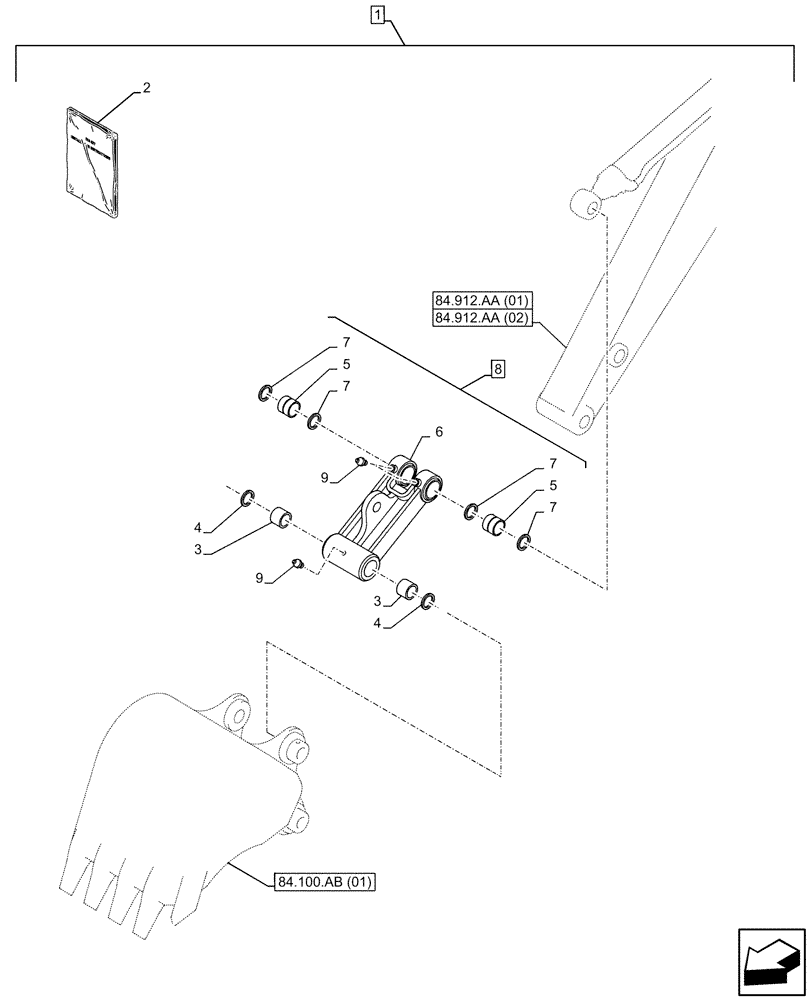

Запчасти Case CX130D (88.100.84[01]) - DIA KIT, BUCKET, LINK, W/ HOOK (88) - ACCESSORIES

1

KG1NP148-00

CONSTRUCTION DIA

Bucket Linkage w/ Hook, Incl 2 - 9

1шт.

2

47880431

INSTRUCTION

1шт.

2

47880482

INSTRUCTION

1шт.

3

KNV17300

BUSHING

2шт.

4

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

2шт.

5

KNV1143

SELF LUB RING

2шт.

6

NSS

NOT SOLD SEPARAT

Bucket Link w/ Hook, Incl in 8

1шт.

7

161295A1

SEAL,70mm ID x 85mm OD x 5mm Thk

4шт.

8

KNV16980

POWER ARM

ASSY, Incl 3 - 7

1шт.

9

153630A1

LUBE NIPPLE

3шт.
