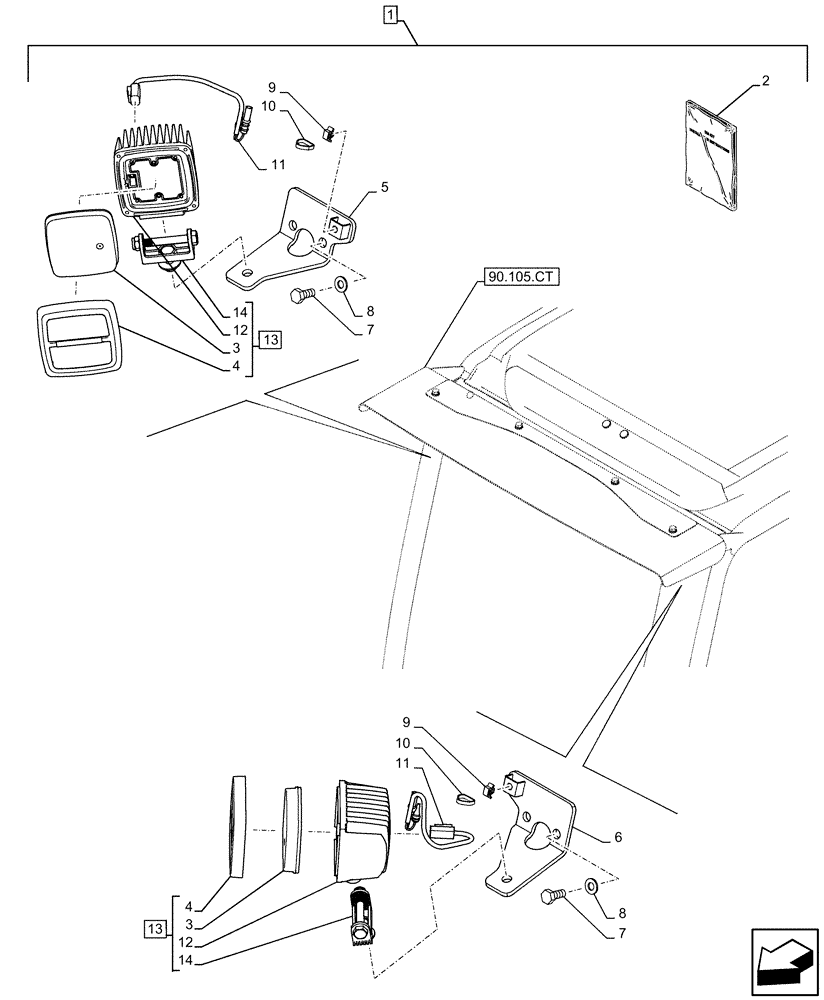

Запчасти Case CX130D (88.100.55[26]) - DIA KIT, LED WORK LAMP (88) - ACCESSORIES

1

KG0HR857-00

CONSTRUCTION DIA

Led Work Lamp, Incl 2 - 14

1шт.

2

47789545

INSTRUCTION

1шт.

3

KHR41720

WORK LAMP

2шт.

4

KHR41730

WORK LAMP

2шт.

5

KHR41850

BRACKET

RH

1шт.

6

KHR41860

BRACKET

LH

1шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

KHR10220

MOUNTING CLIP

2шт.

10

150496A1

MOUNTING CLIP

250mm

2шт.

11

KHR41870

WIRE HARNESS

2шт.

12

NSS

NOT SOLD SEPARAT

Led Work Lamp, Incl in 13

2шт.

13

KHR41700

WORK LAMP

ASSY, Led, Incl 3, 4, 12, 14

2шт.

14

KHR41710

BRACKET

2шт.
