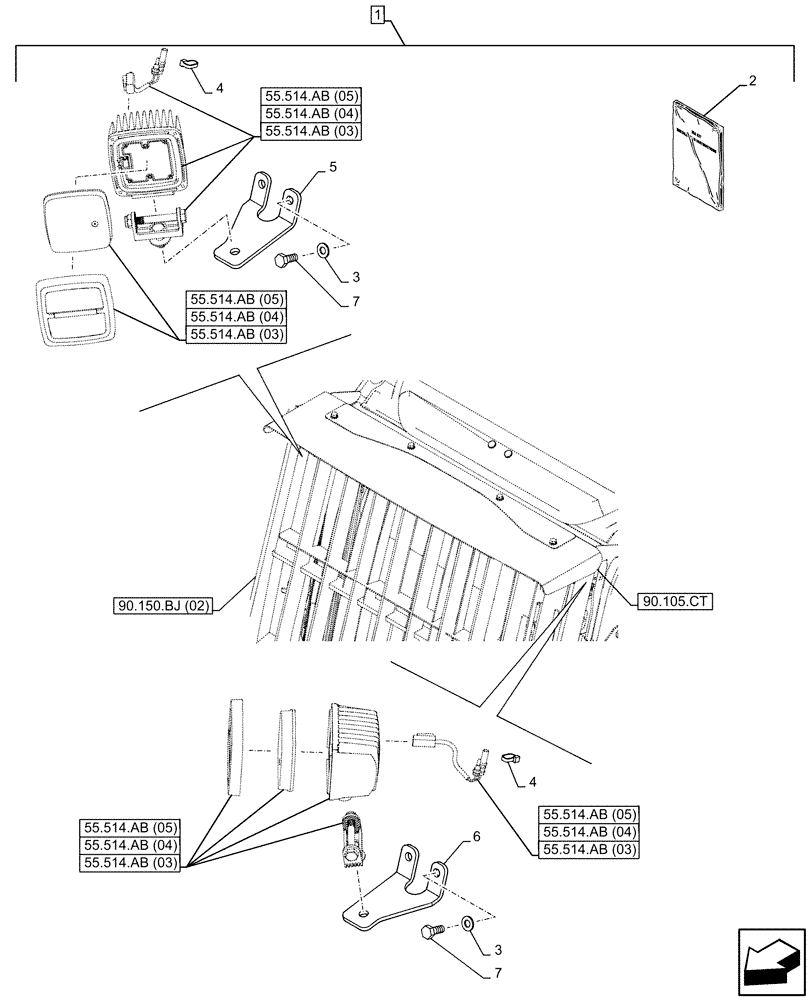

Запчасти Case CX130D (88.100.55[25]) - DIA KIT, LED WORK LAMP (88) - ACCESSORIES

1

KG0HP586-00

CONSTRUCTION DIA

Led Work Lamp, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789543

INSTRUCTION

1шт.

2

47789536

INSTRUCTION

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

150496A1

MOUNTING CLIP

250mm

2шт.

5

KHR42370

BRACKET

RH

1шт.

6

KHR42380

BRACKET

LH

1шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.
