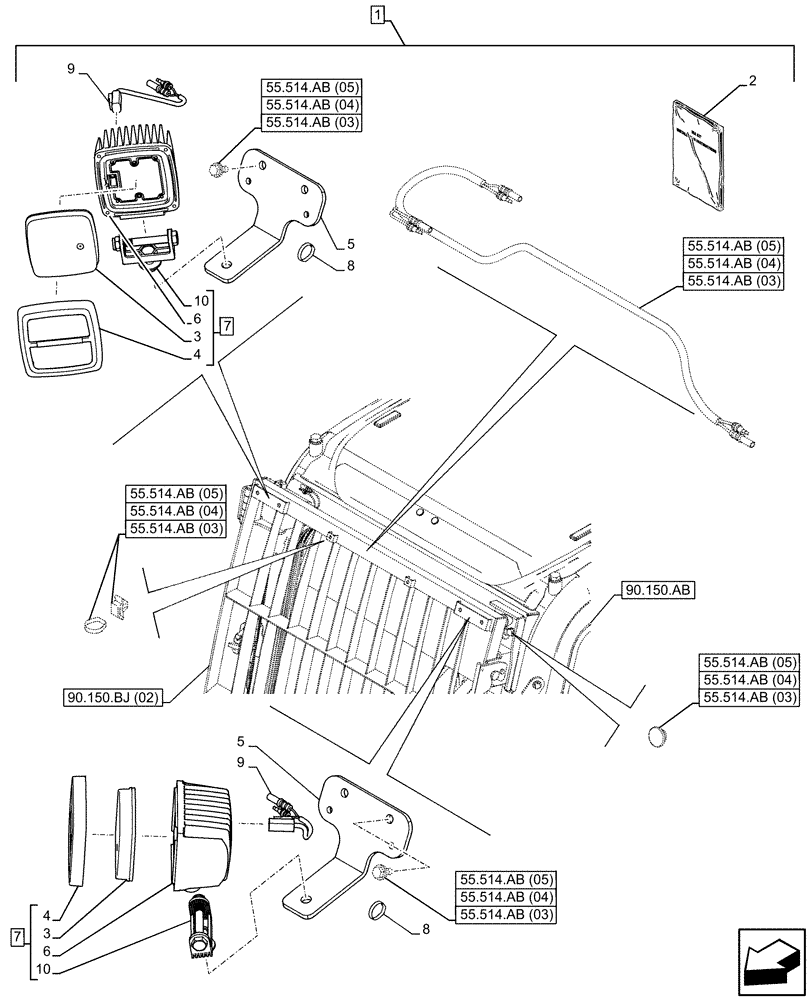

Запчасти Case CX130D (88.100.55[24]) - DIA KIT, LED WORK LAMP (88) - ACCESSORIES
![Схема запчастей Case CX130D - (88.100.55[24]) - DIA KIT, LED WORK LAMP (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5404249.png)
10
55.514.ab (05)
55.514.ab (03)
55.514.ab (03)
3
2
4
5
7
55.514.ab (03)
6
55.514.ab (04)
90.150.ab
55.514.ab (03)
3
6
9
5
55.514.ab (04)
8
10
55.514.ab (05)
8
55.514.ab (04)
7
55.514.ab (03)
4
55.514.ab (04)
55.514.ab (04)
90.150.bj (02)
55.514.ab (05)
55.514.ab (05)
1
55.514.ab (05)
9
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KG0HP583-00
CONSTRUCTION DIA
Led Work Lamp, Incl 2 - 10
1шт.
2
47789544
INSTRUCTION
1шт.
2
47789537
INSTRUCTION
1шт.
3
KHR41720
WORK LAMP
2шт.
4
KHR41730
WORK LAMP
2шт.
5
KHR41880
BRACKET
2шт.
6
NSS
NOT SOLD SEPARAT
Led Work Lamp, Incl in 7
2шт.
7
KHR41700
WORK LAMP
ASSY, Led, Incl 3, 4, 6, 10
2шт.
8
150496A1
MOUNTING CLIP
250mm
3шт.
9
KHR41870
WIRE HARNESS
2шт.
10
KHR41710
BRACKET
2шт.
Выбрано товаров: 11
