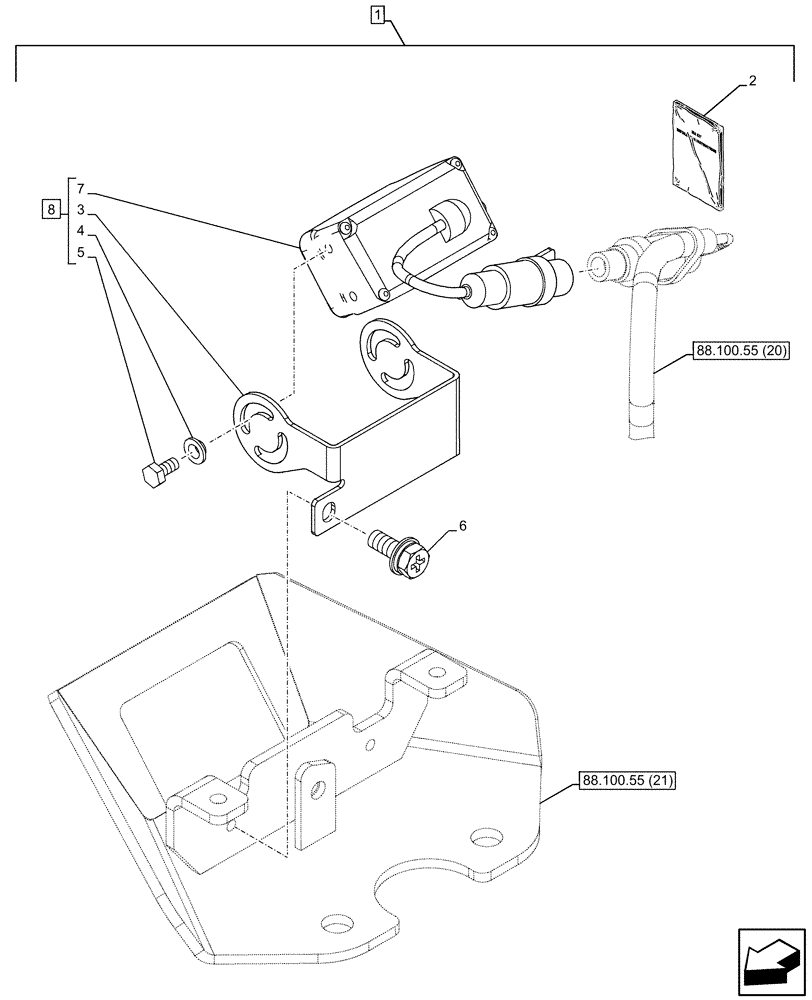

Запчасти Case CX130D (88.100.55[19]) - DIA KIT, RIGHT, SIDE CAMERA (88) - ACCESSORIES

1

KG1NP151-00

CONSTRUCTION DIA

Right Side Camera, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47880432

INSTRUCTION

1шт.

2

47880483

INSTRUCTION

1шт.

3

KHR28180

BRACKET

1шт.

4

KHR28200

BUSHING

4шт.

5

KHR28190

BOLT

4шт.

6

KHN2132

BOLT,Hex Flg Hd, M6 x 16

2шт.

7

NSS

NOT SOLD SEPARAT

Camera, Incl in 8

1шт.

8

KHR23830

VIDEO CAMERA

ASSY, Incl 3 - 5, 7

1шт.
