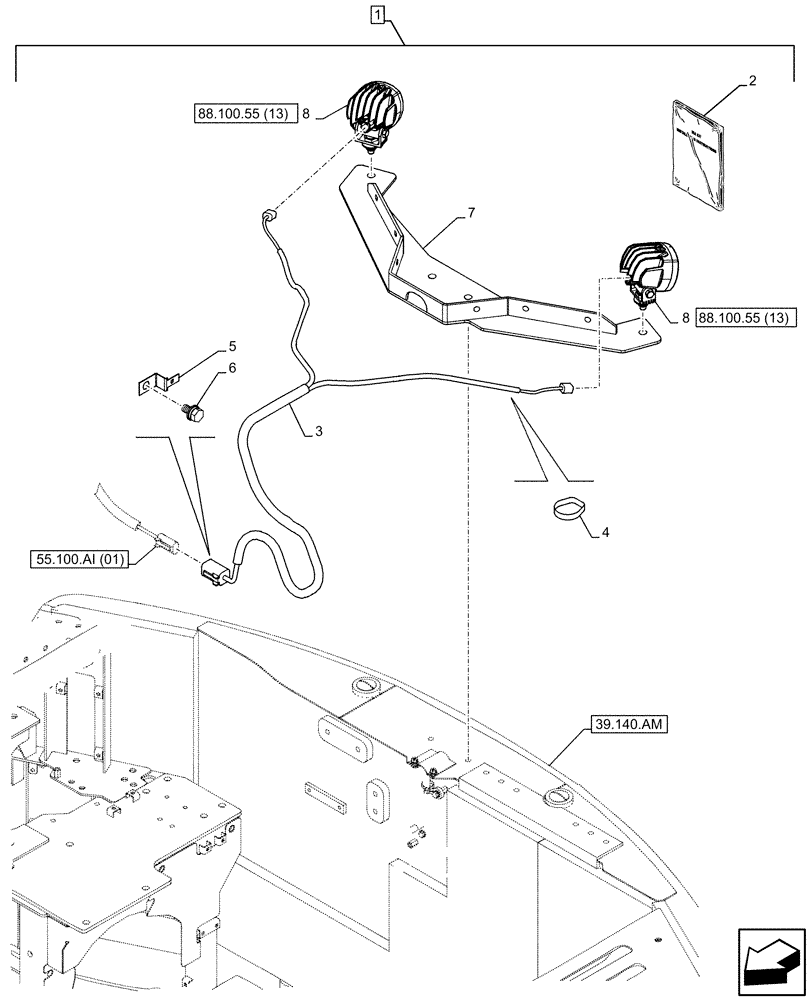

Запчасти Case CX130D (88.100.55[10]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
![Схема запчастей Case CX130D - (88.100.55[10]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5393158.png)
8
55.100.ai (01)
88.100.55 (13)
2
5
3
39.140.am
4
88.100.55 (13)
1
6
8
7
№
Артикул
Название
Примечание
Количество
1
KG1NP147-00
CONSTRUCTION DIA
Right, Left, Rear View Camera, Light, Incl 2 - 8
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
47880435
INSTRUCTION
1шт.
2
47880488
INSTRUCTION
1шт.
3
KRR22501
WIRE HARNESS
1шт.
4
150496A1
MOUNTING CLIP
250mm
6шт.
5
158962A1
CLIP
1шт.
6
167518A1
BOLT
M8 x 16mm
1шт.
7
KHR41821
BRACKET
1шт.
8
KHR37950
WORK LAMP
Led 24V 13W, ASSY
2шт.
Выбрано товаров: 10
