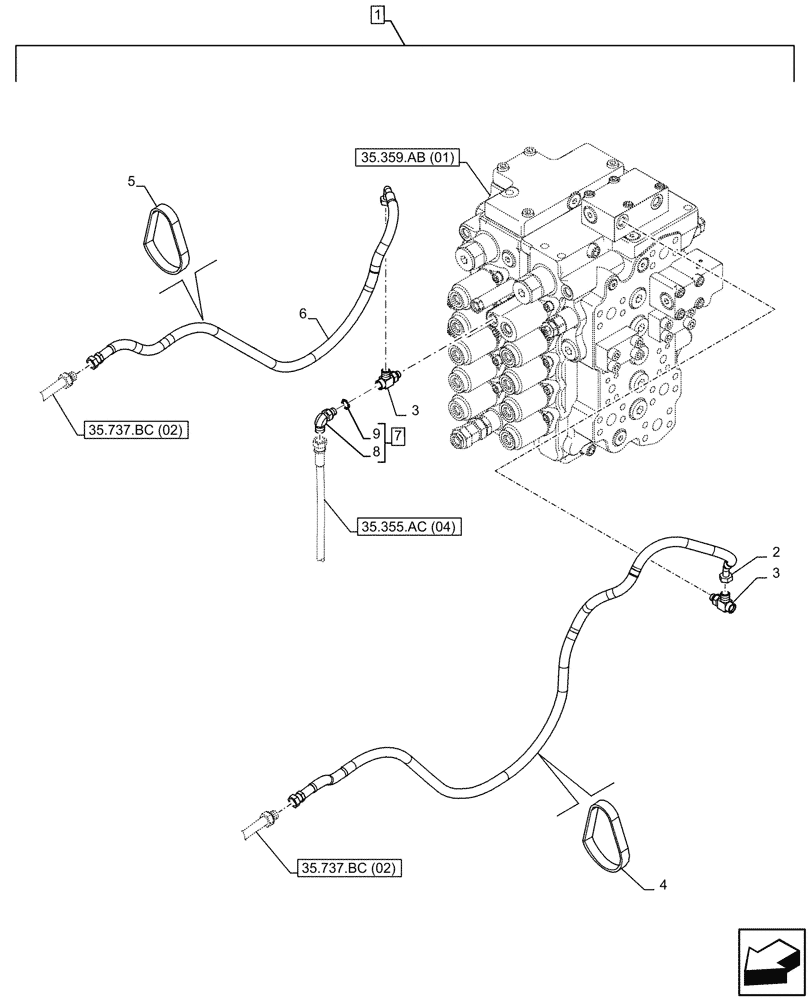

Запчасти Case CX130D (88.100.35[212]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

1

KG1NP149-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ34780

HYDRAULIC HOSE

9mm ID x 1600mm

1шт.

3

KHJ11560

TEE

G1/4" x G3/8" x G1/4"

2шт.

4

150496A1

MOUNTING CLIP

250mm

1шт.

5

150071A1

MOUNTING CLIP

380mm

1шт.

6

KHJ26710

HYDRAULIC HOSE

9mm ID x 1100mm

1шт.

7

KHJ28710

ELBOW

ASSY, 90°, G1/4" x G3/8", Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 7

1шт.

9

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
