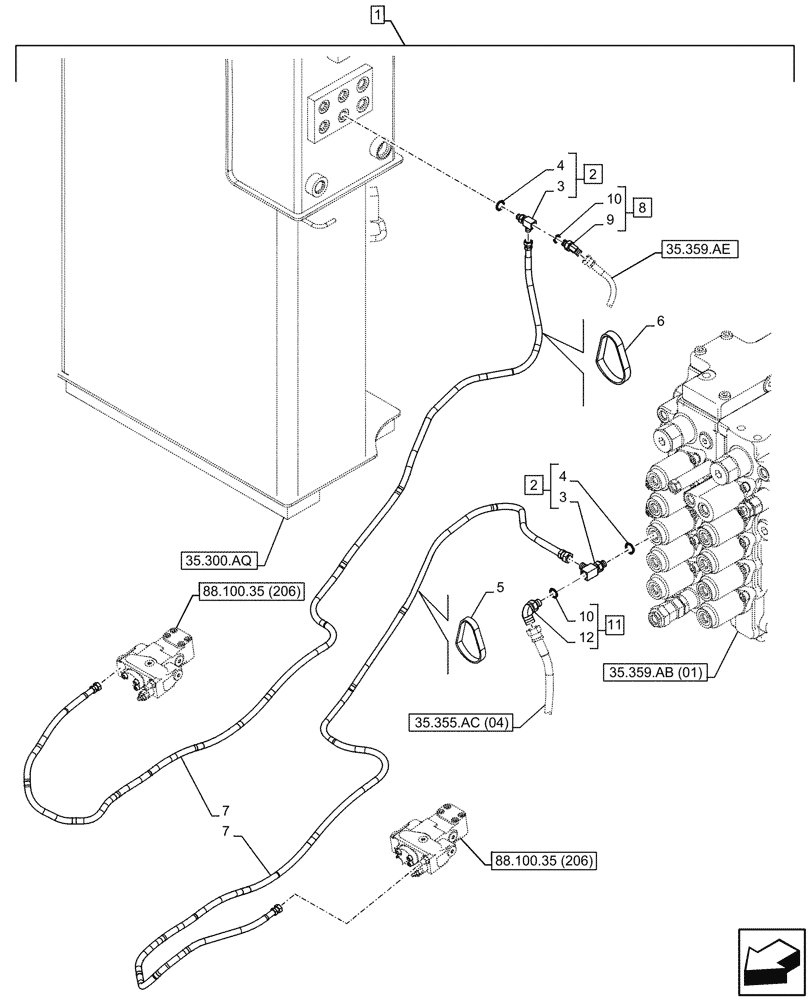

Запчасти Case CX130D (88.100.35[208]) - DIA KIT, SAFETY VALVE, BOOM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

1

KG1NP149-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ2773

TEE

ASSY G1/4", Incl 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 2

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

150496A1

MOUNTING CLIP

250mm

1шт.

6

150071A1

MOUNTING CLIP

380mm

1шт.

7

KHJ27340

HYDRAULIC HOSE

2950mm

2шт.

8

KHJ28630

ELBOW

ASSY, 45°, G1/4" x G1/4", Incl 9, 10 (Qty 1)

1шт.

9

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 8

1шт.

10

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

11

KHJ28710

ELBOW

ASSY, 90°, G1/4" x G3/8", Incl 10 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 11

1шт.
