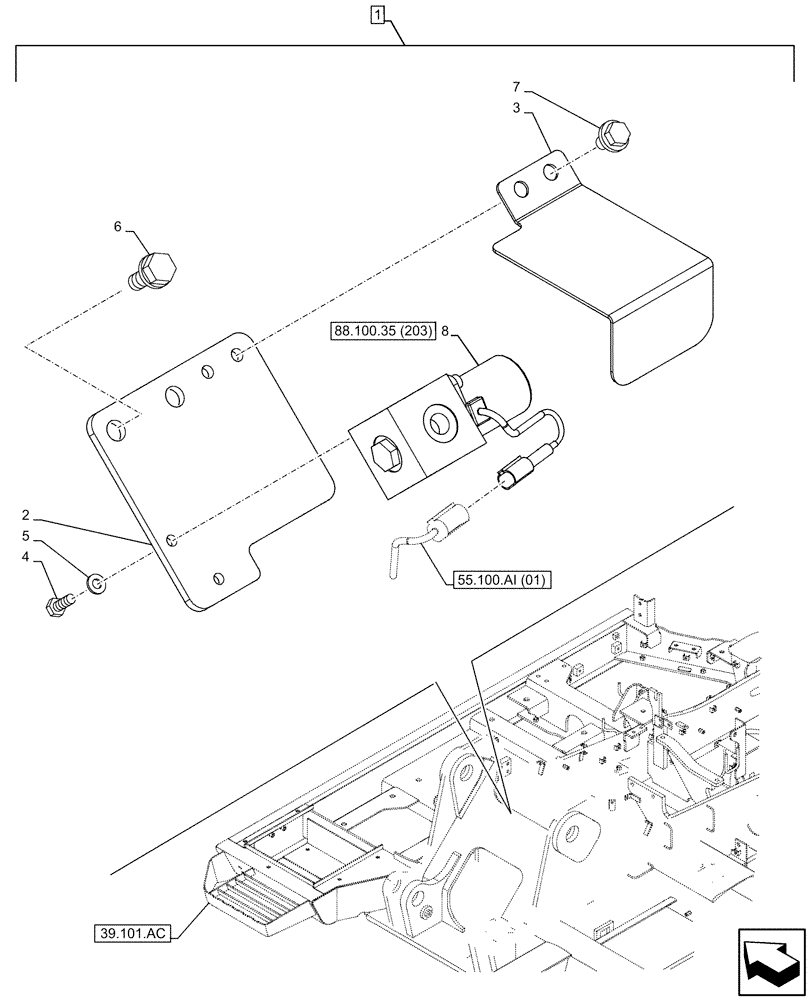

Запчасти Case CX130D (88.100.35[202]) - DIA KIT, FREE SWING, LOCKOUT SOLENOID VALVE (88) - ACCESSORIES

1

KG1NP137-00

CONSTRUCTION DIA

Free Swing Line, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KNJ20720

BRACKET

1шт.

3

KNJ20711

COVER

1шт.

4

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

5

183-106VR

SPRING WASHER

2шт.

6

167182A1

BOLT,Sems, M8 x 25mm

M8 x 25mm

2шт.

7

166345A1

BOLT

M8 x 16mm

2шт.

8

159205A1

VALVE

ASSY

1шт.
