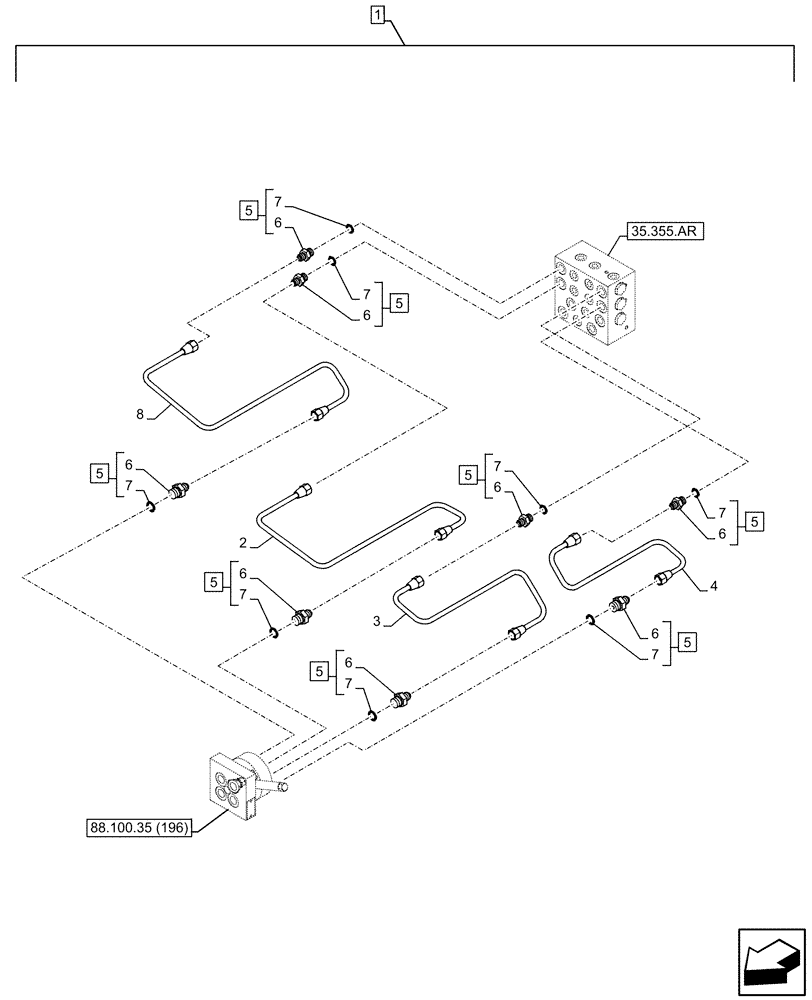

Запчасти Case CX130D (88.100.35[198]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR, HYDRAULIC LINE (88) - ACCESSORIES
![Схема запчастей Case CX130D - (88.100.35[198]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR, HYDRAULIC LINE (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5387357.png)
8
7
3
5
6
7
7
7
6
4
7
5
6
7
5
7
88.100.35 (196)
2
5
5
35.355.ar
7
5
1
5
6
6
6
6
5
6
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KG1NP145-00
CONSTRUCTION DIA
2 Way Selector Valve Kit, Incl 2 - 8
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
KHJ31970
PIPE
1шт.
3
KHJ32490
PIPE
1шт.
4
KHJ23370
HYD TUBE
1шт.
5
KHJ1821
NIPPLE, LUBE
ASSY, Incl 6, 7
8шт.
6
NSS
NOT SOLD SEPARAT
Fitting, Incl in 5
8шт.
7
154475A1
O-RING
8шт.
8
KHJ31960
PIPE
1шт.
Выбрано товаров: 9
