Запчасти Case CX130D (88.100.35[122]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE, SPEED SENSOR (88) - ACCESSORIES

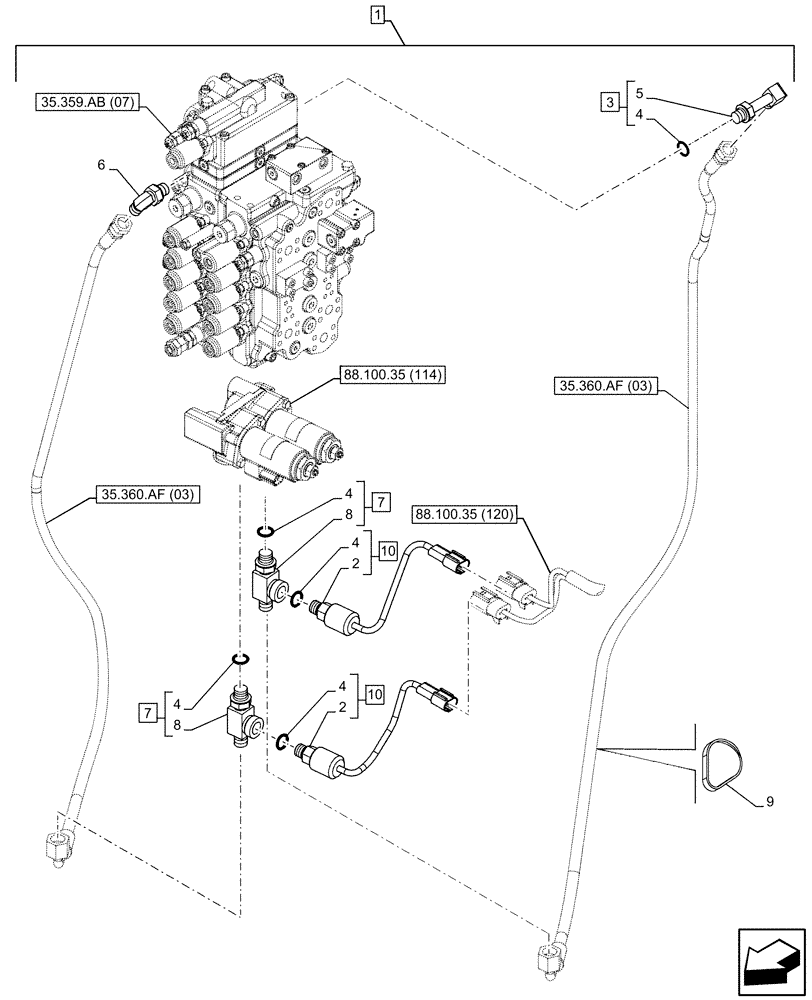

Схема запчастей Case CX130D - (88.100.35[122]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE, SPEED SENSOR (88) - ACCESSORIES
7
10
35.360.af (03)
4
4
1
88.100.35 (120)
4
10
3
7
8
4
2
2
88.100.35 (114)
35.360.af (03)
8
35.359.ab (07)
6
9
4
5

Артикул

Название

Примечание

Количество

1

KG1NP135-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Sensor, Incl in 10

2шт.

3

KHJ1178

ELBOW

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 5

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

6

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

7

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 4 (Qty 2), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

9

150496A1

MOUNTING CLIP

250mm

8шт.

10

KHR21490

PRESSURE SWITCH

ASSY, 0.49 MPa, Incl 2, 4 (Qty 2)

2шт.

Выбрано товаров: 11
