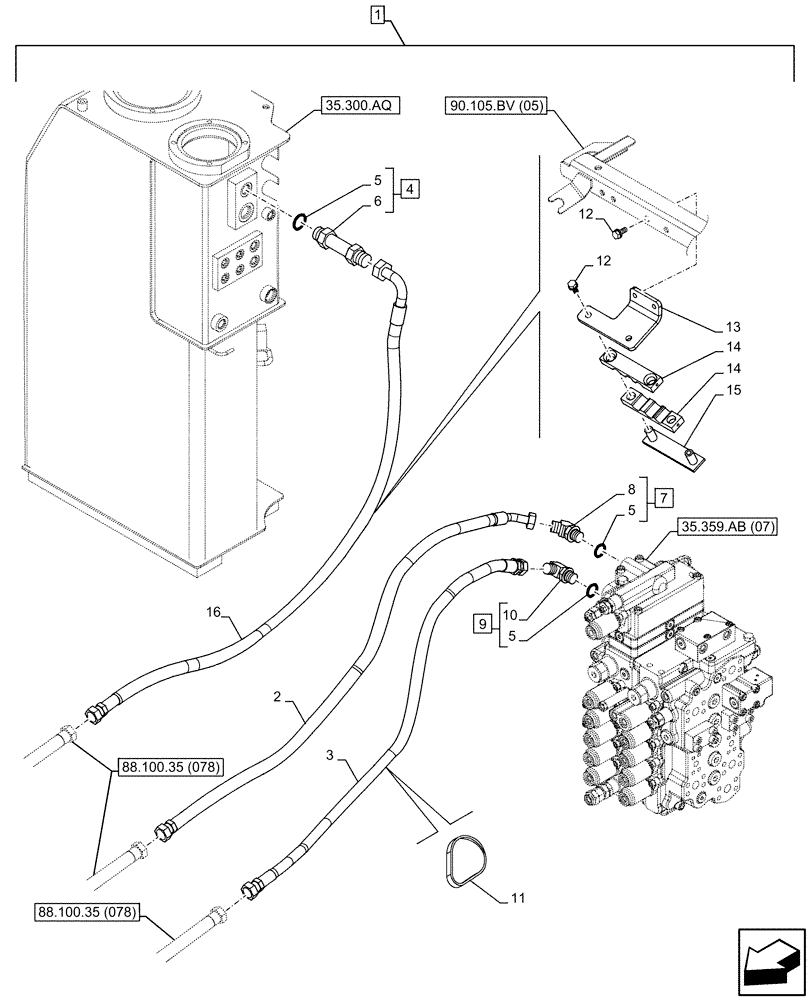

Запчасти Case CX130D (88.100.35[082]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

1

KG1NP131-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KNJ20510

HYDRAULIC HOSE

12mm ID x 1170mm

1шт.

3

KNJ20500

HYDRAULIC HOSE

12mm ID x 1060mm

1шт.

4

KAJ2432

ADAPTER

ASSY, G1/2" x G1/2" Incl 5 (Qty 1), 6

1шт.

5

150539A1

O-RING

3шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

157585A1

ELBOW

ASSY, G1/2" x G1/2" Incl 5 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 7

1шт.

9

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

ASSY, G1/2" x G1/2" Incl 5 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 9

1шт.

11

150496A1

MOUNTING CLIP

250mm

4шт.

12

166052A1

BOLT

M12 x 25mm

4шт.

13

KNJ22650

BRACKET

1шт.

14

KRJ11580

HOSE CLIP

2шт.

15

KRJ11590

SUPPORT

1шт.

16

KNJ20530

HYDRAULIC HOSE

12mm ID x 1500mm

1шт.
