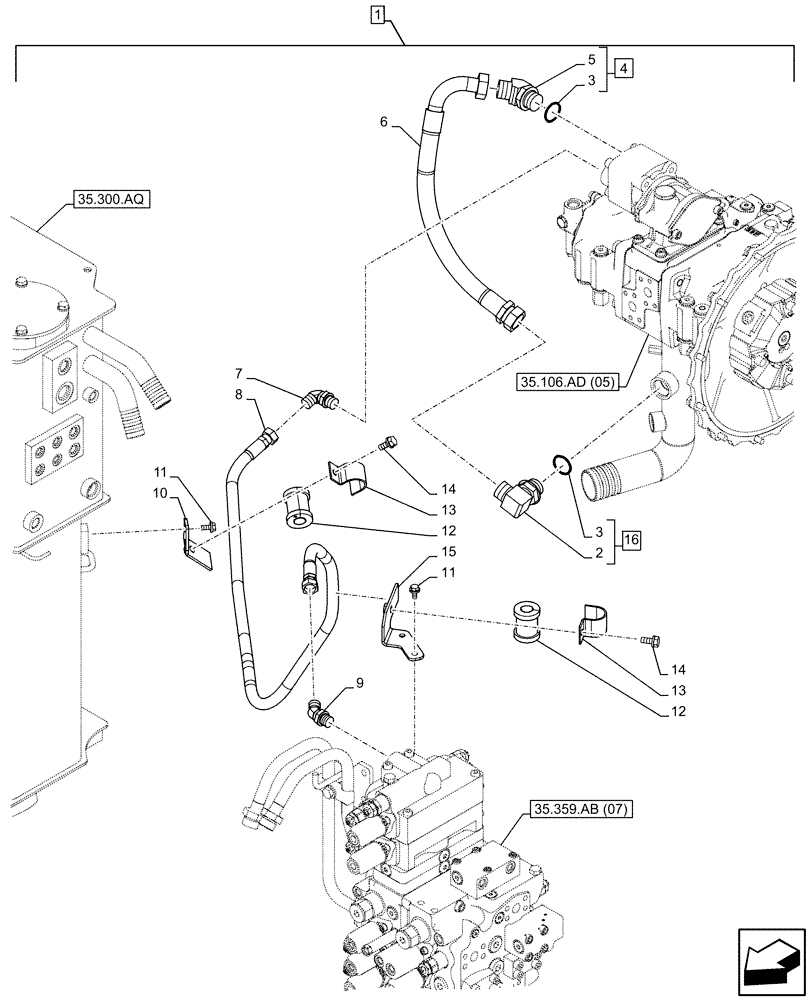

Запчасти Case CX130D (88.100.35[079]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, VARIABLE DELIVERY HYDRAULIC PUMP, LINE (88) - ACCESSORIES

1

KG1NP131-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 16

1шт.

3

154523A1

O-RING

2шт.

4

157587A1

ELBOW

ASSY G1" x G1", Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 4

1шт.

6

KSJ11780

HYDRAULIC HOSE,25.40 mm ID x 530.00 mm

1шт.

7

KHJ28600

ELBOW

1шт.

8

KBJ13260

HYDRAULIC HOSE,1500.00 mm

1шт.

9

KHJ28650

ELBOW

1шт.

10

KNJ20610

BRACKET

1шт.

11

166350A1

BOLT

M8 x 20mm

3шт.

12

KHJ2021

HOSE CLAMP

2шт.

13

KHJ2025

CLAMP

2шт.

14

166052A1

BOLT

2шт.

15

KNJ20600

BRACKET

1шт.

16

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY G1" x G1", Incl 2, 3 (Qty 1)

1шт.
