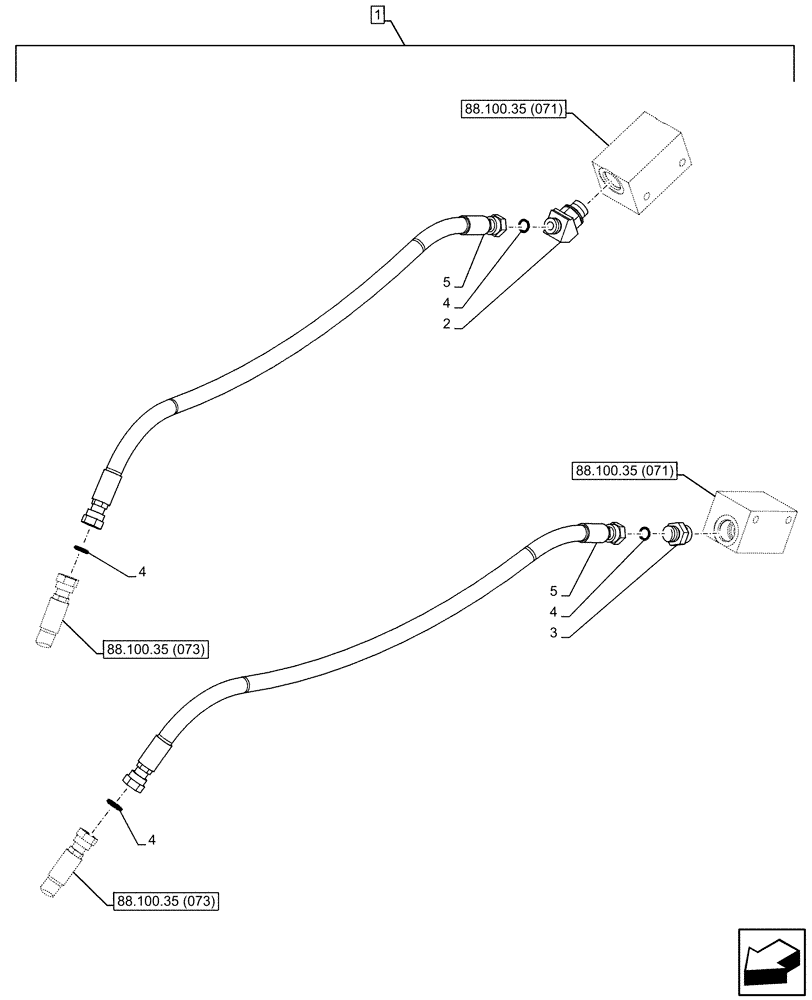

Запчасти Case CX130D (88.100.35[072]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1NP128-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ16290

ELBOW

1шт.

3

KHJ1941

FITTING

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

5

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

19mm ID x 1250mm

2шт.
