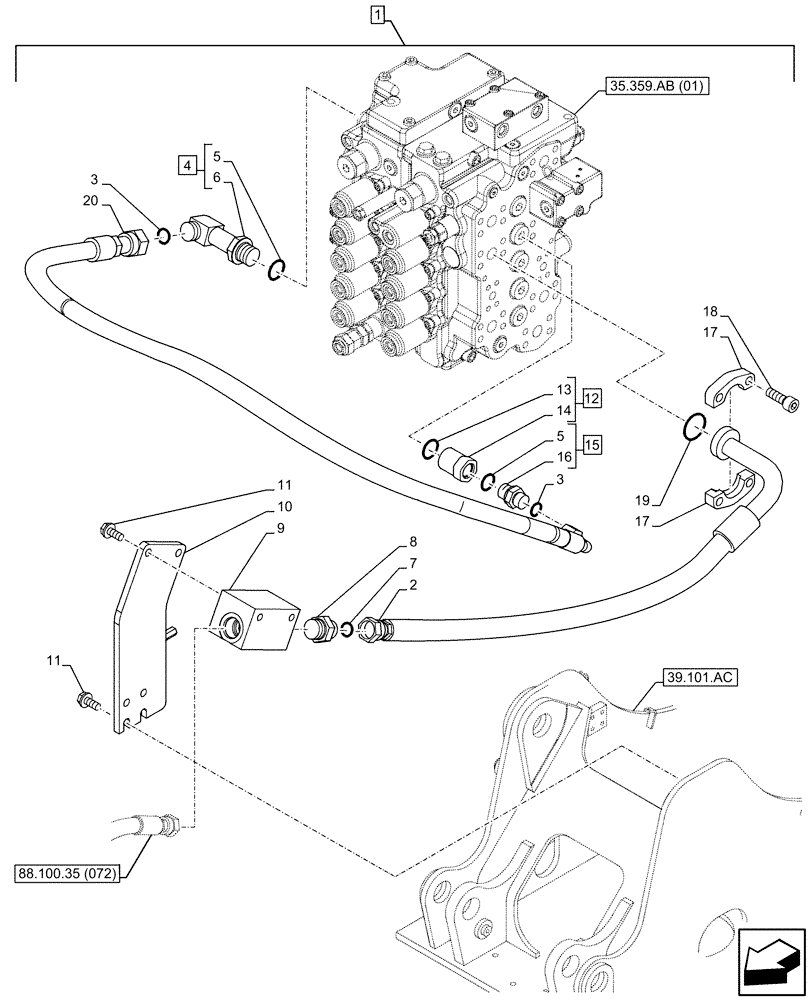

Запчасти Case CX130D (88.100.35[070]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1NP128-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KNJ12830

HOSE ASSY.

15mm ID x 400mm

1шт.

3

155204A1

O-RING

2шт.

4

KHJ14690

ELBOW

ASSY, Incl 5 (Qty 1), 6

1шт.

5

154487A1

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 4

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

KHJ1941

FITTING

1шт.

9

KRJ12170

MANIFOLD VALVE

1шт.

10

KNJ14840

BRACKET

1шт.

11

166352A1

BOLT

M12 x 30mm

6шт.

12

KHJ14720

CHECK VALVE

ASSY, Incl 13, 14

1шт.

13

154495A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

15

KHJ14710

ADAPTER

ASSY, Incl 5 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

153458A1

FLANGE

2шт.

18

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

19

155210A1

O-RING

1шт.

20

KNJ12880

HOSE ASSY.,12.70 mm ID x 930.00 mm

1шт.
