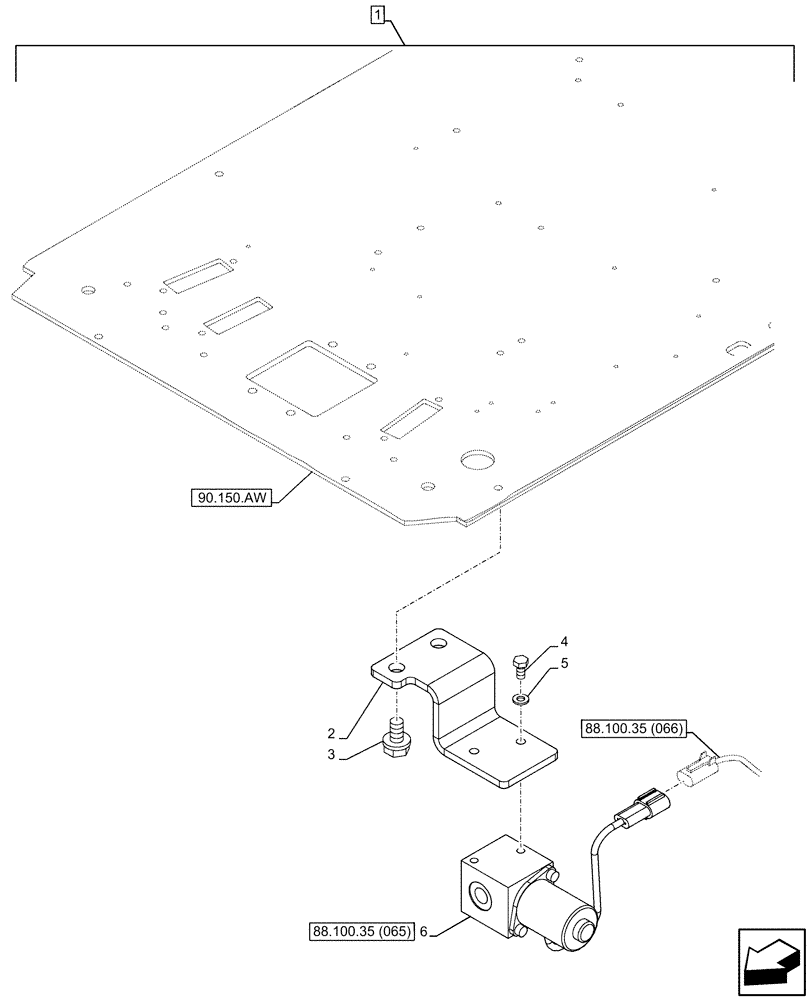

Запчасти Case CX130D (88.100.35[064]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, MOUNTING (88) - ACCESSORIES

1

KG1NP128-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ30520

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

2шт.

4

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

5

183-106VR

SPRING WASHER

M6

2шт.

6

162538A1

VALVE

ASSY

1шт.
