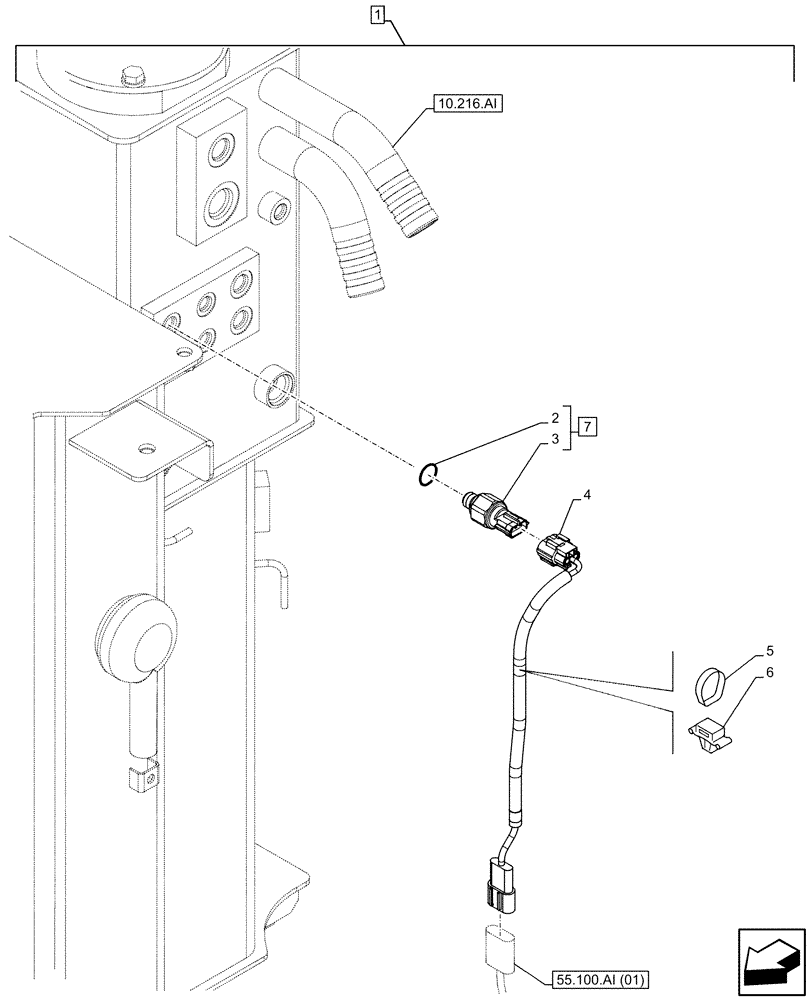

Запчасти Case CX130D (88.100.35[058]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, PRESSURE SWITCH (88) - ACCESSORIES

1

KG1NP124-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Kit, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 7

1шт.

4

KHR33620

WIRE HARNESS

1шт.

5

KHR10220

MOUNTING CLIP

1шт.

6

150496A1

MOUNTING CLIP

1шт.

7

KHR32870

SENSOR

ASSY, Pressure Sensor, 1 MPa, Incl 2, 3

1шт.
