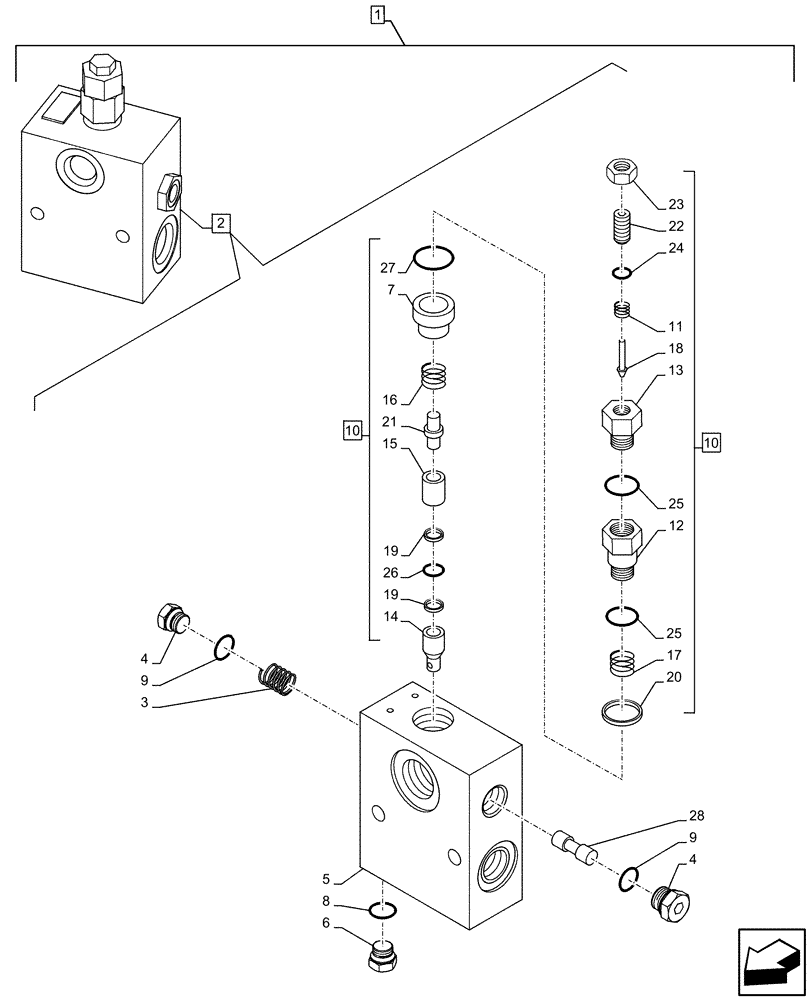

Запчасти Case CX130D (88.100.35[048]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SHUT-OFF VALVE, COMPONENTS (88) - ACCESSORIES

1

KG1NP124-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Kit, Incl 2 - 28

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ10410

VALVE SECTION

ASSY, Incl 3 - 28

1шт.

3

LG005790

COMPRESSION SPRING

1шт.

4

LK005490

PLUG

2шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

6

155515A1

PLUG

1шт.

7

NSS

NOT SOLD SEPARAT

Holder, Incl in 2

1шт.

8

154475A1

O-RING

1шт.

9

154491A1

O-RING

2шт.

10

KHJ15850

VALVE PRESSURE RELIE

ASSY, Incl 7, 11 - 27

1шт.

11

NSS

NOT SOLD SEPARAT

Spring , Incl in 2

1шт.

12

NSS

NOT SOLD SEPARAT

Adapter, Incl in 2

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

14

NSS

NOT SOLD SEPARAT

Poppet, Incl in 2

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet, Incl in 2

1шт.

16

NSS

NOT SOLD SEPARAT

Spring , Incl in 2

1шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

1шт.

18

NSS

NOT SOLD SEPARAT

Needle, Incl in 2

1шт.

19

NSS

NOT SOLD SEPARAT

Ring Back-up, Incl in 2

2шт.

20

NSS

NOT SOLD SEPARAT

Ring Back-up, Incl in 2

2шт.

21

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

1шт.

22

NSS

NOT SOLD SEPARAT

Screw, Incl in 2

1шт.

23

174R012SR

JAM NUT

1шт.

24

154463A1

O-RING

1шт.

25

155223A1

O-RING

2шт.

26

154457A1

O-RING

1шт.

27

154481A1

O-RING

1шт.

28

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.
