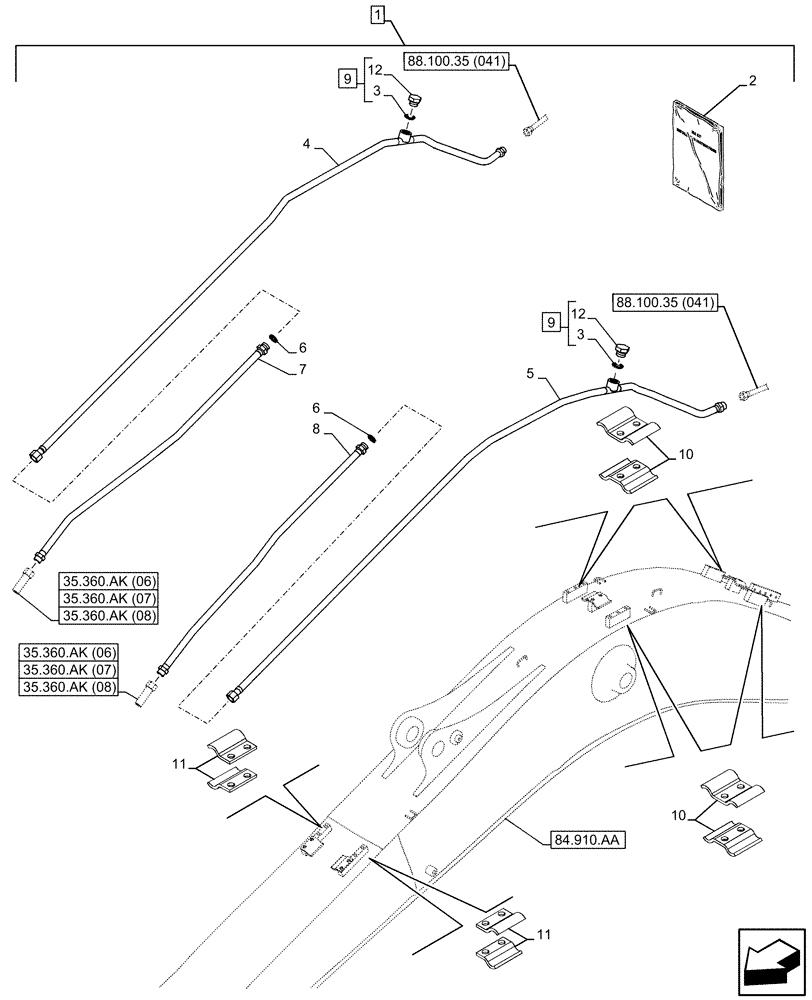

Запчасти Case CX130D (88.100.35[040]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1NP124-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Kit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47900066

INSTRUCTION

1шт.

2

47900360

INSTRUCTION

1шт.

3

154503A1

O-RING

2шт.

4

KNV16830

HYD TUBE

1шт.

5

KNV16820

HYD TUBE

1шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

7

KNV22950

PIPE

1шт.

8

KNV22940

PIPE

1шт.

9

152924A1

PLUG

ASSY, G3/4", Incl 3, 12

2шт.

10

KHV10450

COLLAR CLAMP

8шт.

11

KHV10460

COLLAR CLAMP

4шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

2шт.
